Gigabyte
GO-M1600A Multimedia 16x DVD-ROM Drive with integrated FM/MP3 playback Review
(4)
Remember to visit our Chinese edition
of OCW at
http://www.ocworkbench.com/chinese.stm bookmark it
today. Also visit the Gigabyte Forum for all
Gigabyte support
Benchmark - CDSpeed (Data CD - BAPCO Sysmark
2002 Disk 1)
Using a Data CDROM from BAPCO's Sysmark 2003 Disc
1 of 2 which has a length of 76minutes. We ran the Nero CDSPeed test and found
that the average Speed is around 37X. At max it reaches a high of 49.17X.
The seek times recorded are also slightly faster than the specification. Again
we see low CPU utilisation.
In fact, in this test, while I am testing, I was
opening up Photoshop and Frontpage retreiving some files and chatting on MSN
with fellow moderator. This didn't affect the performance much. The Burst Rate
at 1MB/s.

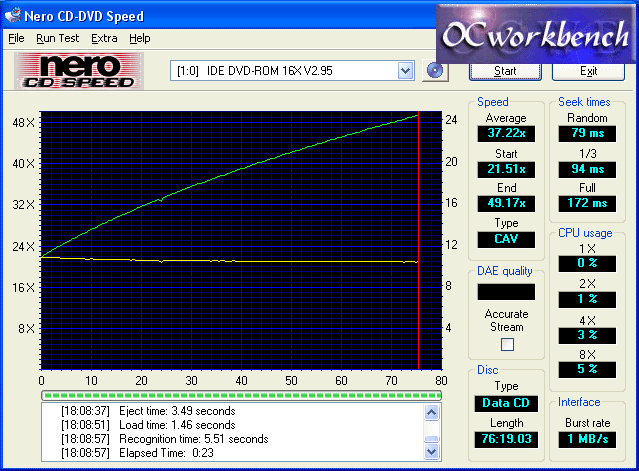

Nero CD Speed Test results
General Information Operating System
Windows XP Professional Drive
IDE DVD-ROM 16X Firmware Version
2.95 Serial Number Disc
Data CD Capacity
76:19.03
Transfer Rate Start
21.51x End
49.17x Average
37.22x Type
CAV
Seek Times Random
79 ms 1/3
94 ms Full
172 ms
CPU Usage 1X
0 % 2X
1 % 4X
3 % 8X
5 %
Interface Burst Rate
1346 KB/sec
Spin Up/Down Times Spin Up Time
2.68 sec Spin Down Time
1.32 sec
Load/Eject Times Load Time
1.46 sec Eject Time
3.49 sec Recognition Time
5.51 sec
Log Time
Elapsed
Action [17:51:56]
Starting Transfer Rate Test [17:53:31]
Canceled by user [17:54:57]
Starting Transfer Rate Test [17:57:06]
2:09
Speed:22-49 X CAV (37.21 X average) [17:57:06]
Starting Seek Times Test [17:57:14]
Random Seek: 78 ms [17:57:23]
1/3 Seek: 94 ms [17:58:11]
1:06
Full Seek: 482 ms [17:58:11]
Starting CPU Usage Test [17:58:23]
Error - ILLEGAL MODE FOR THIS TRACK (056400) [17:58:51]
Starting Transfer Rate Test [18:01:00]
2:09
Speed:22-49 X CAV (37.22 X average) [18:01:00]
Starting Seek Times Test [18:01:09]
Random Seek: 81 ms [18:01:18]
1/3 Seek: 96 ms [18:01:35]
0:35
Full Seek: 172 ms [18:01:35]
Starting CPU Usage Test [18:01:50]
CPU usage at 1X: 0 % [18:02:05]
CPU usage at 2X: 1 % [18:02:21]
CPU usage at 4X: 2 % [18:02:36]
1:00
CPU usage at 8X: 5 % [18:02:36]
Starting Burst Rate Test [18:02:47]
0:11
Interface burst rate: 1 MB/sec (1352 KB/sec) [18:02:47]
Starting Spin-Up/Down Test [18:02:51]
Spin-up time: 2.69 seconds [18:03:02]
0:16
Spin-down time: 1.30 seconds [18:03:02]
Starting Load/Eject Test [18:03:23]
Eject time: 21.05 seconds [18:03:23]
Load time: 0.01 seconds [18:03:23]
0:21
Recognition time: 0.00 seconds [18:04:22]
Starting Transfer Rate Test [18:06:31]
2:09
Speed:22-49 X CAV (37.22 X average) [18:06:31]
Starting Seek Times Test [18:06:39]
Random Seek: 79 ms [18:06:48]
1/3 Seek: 94 ms [18:07:06]
0:35
Full Seek: 172 ms [18:07:06]
Starting CPU Usage Test [18:07:21]
CPU usage at 1X: 0 % [18:07:36]
CPU usage at 2X: 1 % [18:07:51]
CPU usage at 4X: 3 % [18:08:06]
1:01
CPU usage at 8X: 5 % [18:08:06]
Starting Burst Rate Test [18:08:18]
0:11
Interface burst rate: 1 MB/sec (1346 KB/sec) [18:08:18]
Starting Spin-Up/Down Test [18:08:22]
Spin-up time: 2.68 seconds [18:08:33]
0:16
Spin-down time: 1.32 seconds [18:08:33]
Starting Load/Eject Test [18:08:37]
Eject time: 3.49 seconds [18:08:51]
Load time: 1.46 seconds [18:08:57]
0:23
Recognition time: 5.51 seconds
