EPoX 8RDA3+ nForce2 Mainboard Gallery (2)
Bluetooth
28 Apr 2003

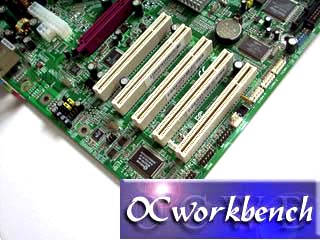

Top Right Corner of the mainboard. From here we can see 5 PCI slots and 1 AGP slot. The on board audio codec used is Cmedia 9739Al. WINBOND W83627THF-A IO Controller chip is seen on the corner of the board.  A 3 phase voltage regulator design is implemented with +12v aux power connector for stable 12v line. At the back panel, there are 4 USB ports, 6 channel audio ports and 2 LAN ports (suppoted by Realtek and nVIDIA)

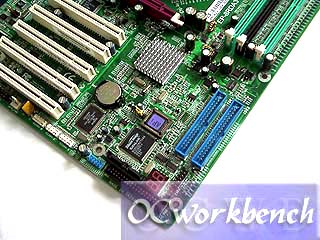

SATA RAID supported by SiliconImage Sil3112chip. 2 channels of ATA133. 1394 supported (white connectors) by agero fw323-60 chipset

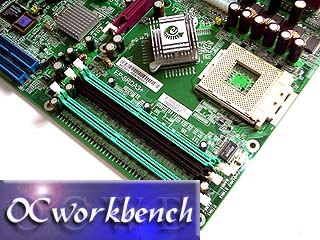

3 DIMM slots supporting up to 4GB of DDR266/DDR333/DDR400 using 184pin unbuffered

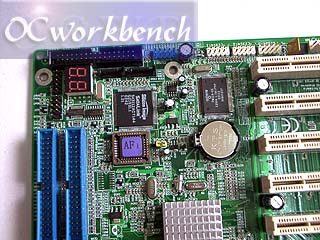

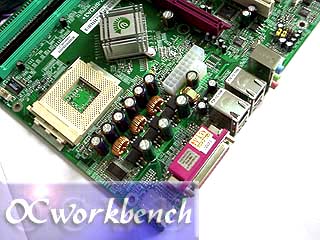

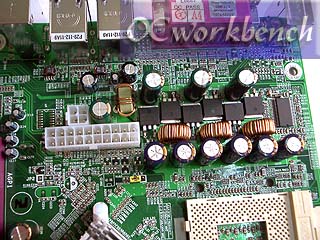

Another view of the bottom left corner of the mainboard showing the DEBUG LED, BIOS, chipsets, south bridge. Close up view of the power connectors and voltage regulator

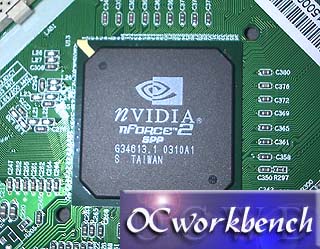

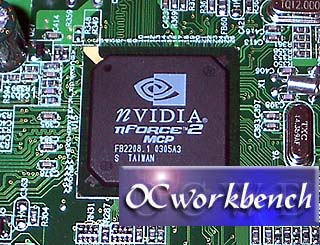

nForce2 SPP, the latest C1 stepping. nForce2 MCP, Epox 8RDA+ uses MCP-T

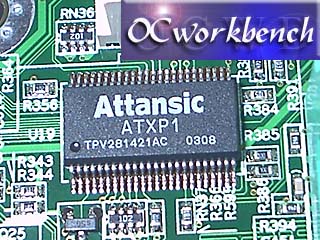

Attansic ATXP3
Jumper Free Over Clock Controller
FID, VID In/Out Put Pins
Up To 12GPIO
Auto-recover
Provide CPU Changing Detect Pin

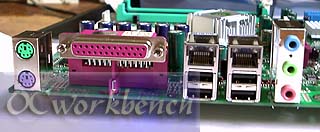

Back Panel : PS/2 Mouse, keyboard, 4 USB 2.0, 2 LAN, audio ports.
