EPoX 8RDA3+ nForce2 Mainboard Gallery (3)
Bluetooth
28 Apr 2003



BIOS version : 2nd Apr 2003. Phoenix BIOS.

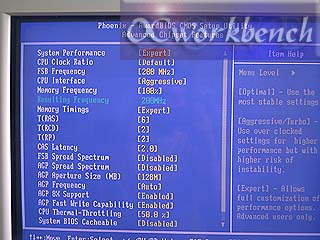

Similar to the EPoX 8RDA+ BIOS, you can select System Performance to  Aggressive, Optimal or Turbo and Expert mode. In Expert mode, you can configure all the ram timings and fsb frequency.

Memory Frequency can be set to 100% which mean 1:1 CPU:MEM ratio synchronously. As we use a AXP3000+ (Barton 400mhz model), we set it to 200Mhz for FSB and memory frequency to 100%. Ram timings are set to CAS2, 6-2-2 which is reasonably stable provided we pumped up the Vdimm voltages.

FSB Range : 100 ~ 250Mhz 1Mhz stepping
Multiplier : 3x ~ 24x at 0.5 interval

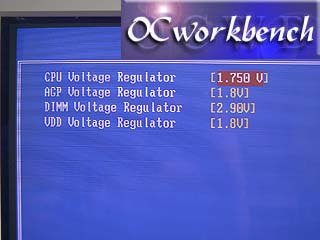

As 8RDA3+ is meant to be a overclocking board, it allows you to set various voltages for CPU, AGP DIMM and chipset voltage.

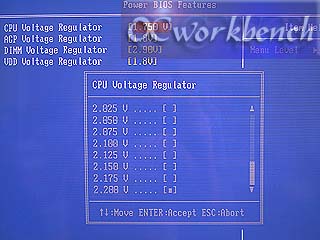

CPU Vcore voltages can be set from  DEfault, 1.40v up to 2.20v

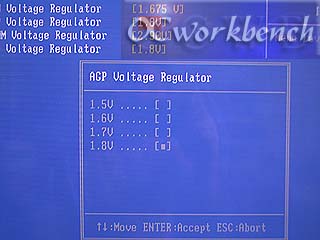

AGP voltage can be set up to 1.80v

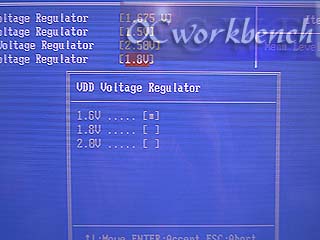

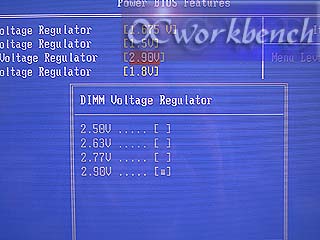

DDR Voltages are selectable up to 2.90v VDD can be set to 2.0v
