DFI 748-AL SiS 748 Gallery (2)
Overclocker 7 Aug 2003

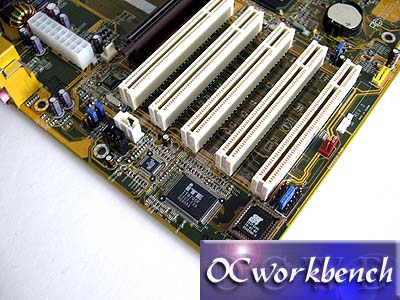

5 PCI and 1 AGP slot. The BIOS and the ITE controller chip can be found on the top left corner of the mainboard.	If you intend to use larger heatsinks, there is ample space. I have tried both Thermaltake Volcano 11 and Coolermaster Aero 7+. There are 2 USB ports and 1 LAN port at the back panel. Two com ports, game port, audio ports, parallel port and keyboard+ps/2 mouse port.

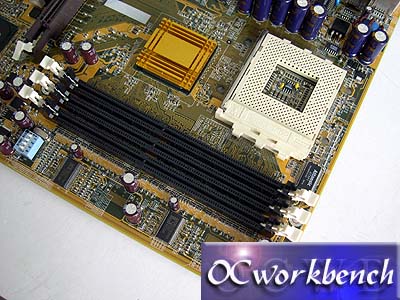

This board uses South Bridge - SiS 963L. On the left are two USB connectors for USB External Brackets	3 DIMM slots supporting up to 3GB of DDR400/333/266/200. There is a dip switch for setting default CPU type used. e.g. AXP2700+ set to 166, AXP2400+ set it to 133. The heatsink of the chipset is mounted on the North Bridge using double sided tape. I would suggest you replace that with epoxy for better heat dissipation.
