ASUS P4C800 i875 Canterwood Mainboard Gallery (2)
Overclocker 14 Apr 2003

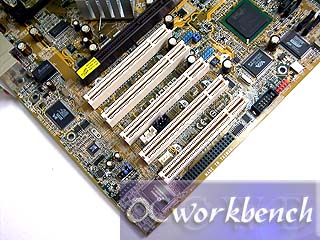

Top Right Corner of the mainboard. From here we can see 5 PCI slots and 1 AGP Pro slot. The on board audio codec used is ADI 1985 6 channel. On the left of PCI Slot 5 is the WI-FI connector. WINBOND W83627THF-A IO Controller chip is seen on the corner of the board. 3COM 3C940 Gigabit Ethernet is on board. It comes with a built in cable tester. The Socket 478 and the North Bridge. ICS 952607 is used for controlling the large range of FSB. (up to 400Mhz fsb selectable)

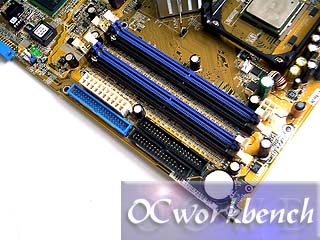

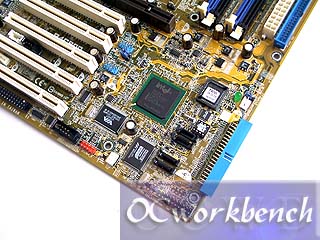

2 SATA. 2 SATA RAID, 1 channel of IDE RAID, VIA 6307 used to control 1394 on board (red port for external 1394 bracket). South Bridge controller ICH5. 4 DIMM slots supporting up to 4GB of DDR266/DDR333/DDR400 using 184pin unbuffered ECC DDR allowing up to 6.4GB/s data transfer rate.

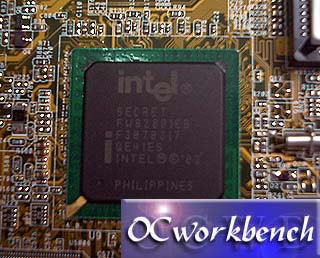

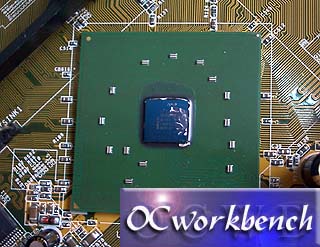

Intel 875P North Bridge MCH provides CPU, AGP, DDR, HUB interface. MCH manages the flow of information between the interfaces. MCH provides the memory interface with 6.4GB/s bandwidth.The MCH interconnects to south bridge ICH5 using Intel proprietary hub interface. Intel ICH5 FW82801EB is the 5th Generation that integrates I/O functions including 2 channel ATA 100, up to 8 USB 2.0/1.1, I/O APIC, LPC interface, AC92 2.3 interface, PCI 2.2 interface.

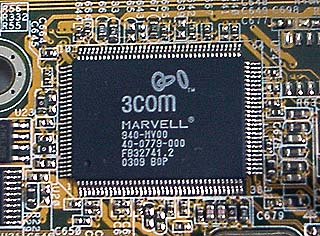

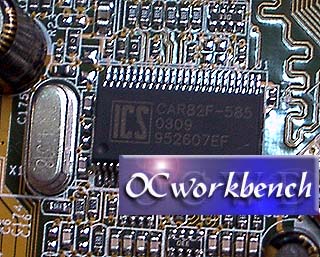

ICS 952607EF clock generator chip is used on this board which allows a large range of FSB. 3COM Gigabit Ethernet chipset - 3C940. Bundled with the drivers are the cable tester and other network diagnostics.

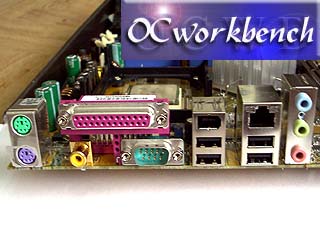

P4C800 provides a WI-FI slot for connecting to WI-FI certified equipment for wireless networking. PS/2 Mouse, keyboard, Parallel port, S/PDIF out, Serial port, 1394, 4 USB 2.0, 1 LAN, audio ports.
