ASUS P4C800 i875 Canterwood Mainboard Gallery (3)
Overclocker 14 Apr 2003

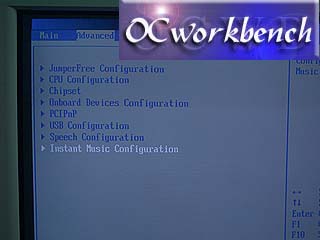

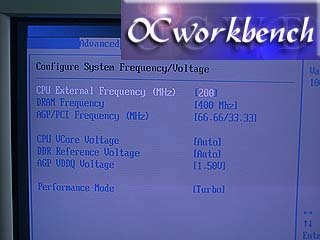

BIOS version : 1002.008. P4C800 uses AMI BIOS and the new interface looks rather cool with a moving colour bar on top. This is the main menu. In this version of the BIOS 1003 beta, it comes with an option "Instant Music Configuration". It is suppose to play CD audio without the need to go into Windows. CPU FSB/Speed allows you to set the FSB your system will run at after reboot. The range is from 100 ~ 400 at 1Mhz stepping. AGP/PCI can be fixed. CPU, DDR and AGP voltages are adjustable. In our test, we set performance mode to Turbo. There are no cpu:mem ratios adjustable except for the options of DRAM frequency at 266, 320 and 400. (as shown in CPU External Frequency)

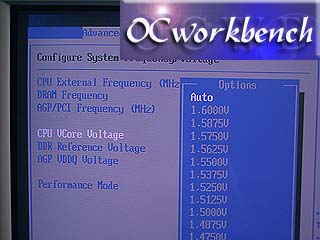

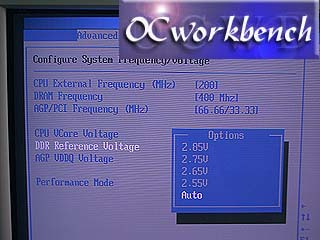

CPU Vcore voltages can be set from the menu above. DDR Voltages are selectable up to 2.85v

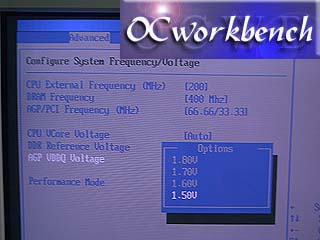

AGP voltage can be set up to 1.80v

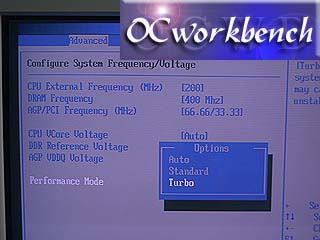

In our tests, we set performance mode to Turbo for best performance.

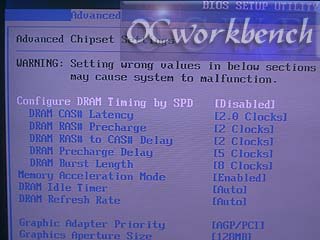

We set our ram settings to 2-5-2-2. Burst Length 8 clks. The only change we made is that we set AGP Aperture size to 128M.



Next
