Specifications:

CPU – For Socket A(462) AMD Athlon XP/Athlon/Duron processors
Supports 333/266/200 MHz FSB
ASRock U-COP: Universal CPU Overheating Protection
Chipset – SiS latest 746FX + 963L, with 1GB MuTiol supporting
Memory– supports 3 x DDR DIMMs, Max. 3GB
supports 1 DDR400 DIMM, Max. 1GB
supports 2 DDR333 DIMM, Max. 2GB
supports 3 DDR266 DIMM, Max. 3GB
AGP slot – 1 AGP 8X/4X 1.5v slot
ASRock I/O – 4 default ready-to-use USB 2.0 ports (with one extra header, provide extra 2 USB2.0 ports)
1 default 10/100 Ethernet LAN RJ45 port
default Game/MIDI port, COM port, Parallel port, and Audio jack
5.1 channel 3D Audio
10/100 Ethernet LAN
6 PCI slots, PCI2.2 compliance
20pin standard ATX power connector
ATX form factor 9.6”x12”
Support Suspend-To-RAM

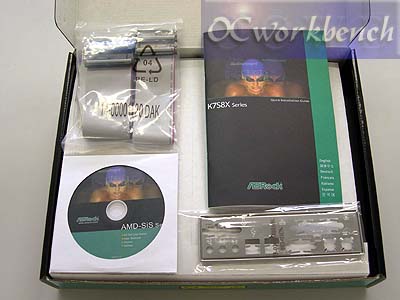

Multi-languages Quick Installation Guide
Bundle CD includes ASRock PC DIY Live Demo, PC-Cillin 2002, 3D audio player, drivers, and e-Manual, etc.
FCC, CE certificated
Hardware Monitor – CPU temperature sensing (ASRock U-COP)
CPU overheat shutdown (ASRock U-COP)
Chassis temperature sensing
Voltage monitoring: +12V, +5V, +3V, Vcore
CPU fan tachometer; Chassis fan tachometer
BIOS – AMI legal BIOS; supports “Plug and Play”, ACPI 1.1 compliance wake up events; supports jumperfree; SMBIOS 2.3.1 support; CPU frequency stepless control
OS – Microsoft® Windows® 98 SE/ME/2000/XP compliance
