ASROCK K7S8X SiS 746FX Mainboard Gallery (2)
Bluetooth 18 Feb 2002



The Mainboard

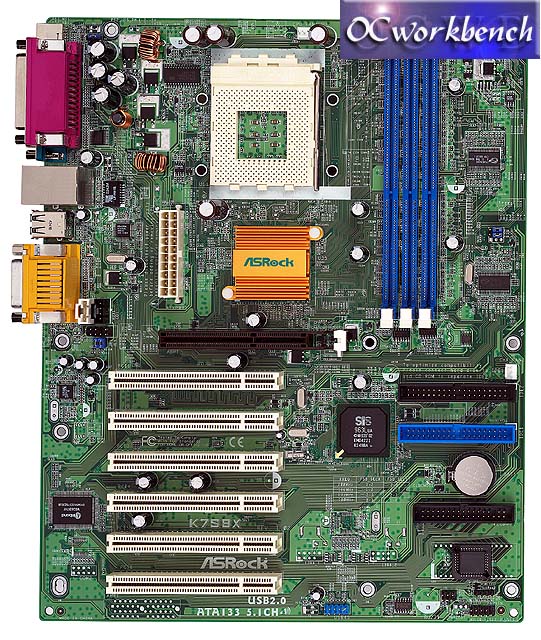

The mainboard design around 2 phase mosfet design. CMedia 9739 5.1 ch audio. This board's design is jumperless for FSB ranging from 100 ~ 248Mhz at 1Mhz stepping. There are jumpers on the board which allows you to set the default fsb e.g. 133, 166, 200 using jumpers too. This board supports 6 slots with PCI Specification 2.2, 1 AGP slot supporting 1.5v, 8X / 4X AGP cards.

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN
Hardware Monitor: CPU temperature sensing (ASRock U-COP);
Chassis temperature sensing; CPU overheat shutdown to protect CPU life (ASRock U-COP)

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two additional USB 2.0 ports upgrade.

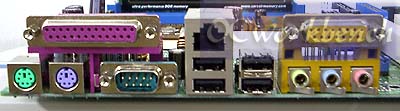

The backpanel consists of PS/2: 1 keyboard port / 1 mouse port; 1 RJ 45 port; 4 rear default USB ports (USB 2.0); 1 serial port: COM 1; 1 parallel port: ECP/EPP support; Audio Jack: Line Out/ Line In/ Microphone + Game port

This board doesn't come with multiplier and voltage adjustments at all.
