AOPEN AX4C Max i875 Canterwood Mainboard Gallery (2)
Overclocker 16 Apr 2003

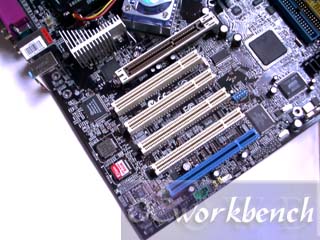

Top Right Corner of the mainboard. From here we can see 5 PCI slots and 1 AGP slot. The blue coloured slot is the AOpen's Hercules Slot as mentioned on page 1. Two BIOS which is the Die Hard BIOS for backup BIOS.  Realtek ALC650 for 5.1 ch audio. ICS (952619) allowing overclocking to 400mhz fsb.

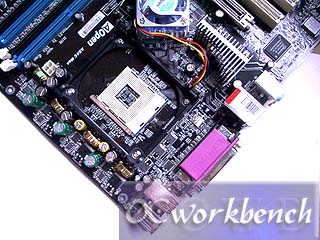

The Socket 478 and the North Bridge.

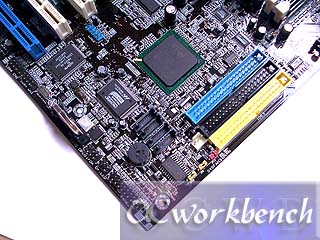

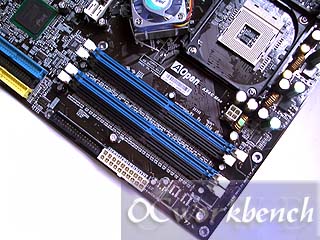

2 SATA RAID 0 (ICH5R), 2 SATA RAID 0, 1, 0+1, ports. 2 integrated IDE ATA100 and 1 channel of IDE ATA133 by Promise. 4 DIMM slots supporting up to 4GB of DDR266/DDR333/DDR400 using 184pin unbuffered ECC DDR allowing up to 6.4GB/s data transfer rate.

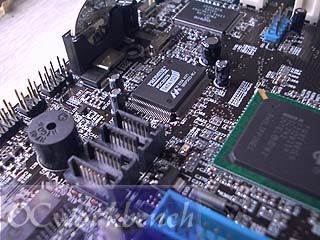

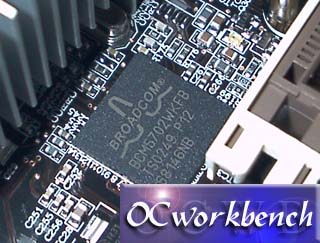

2 SATA RAID 0 (ICH5R), 2 SATA RAID 0, 1, 0+1, ports (Promise). IDE ATA100 ports, 1 channel of ATA133, South Bridge controller ICH5R. Broadcom Gigabit Ethernet Controller on board

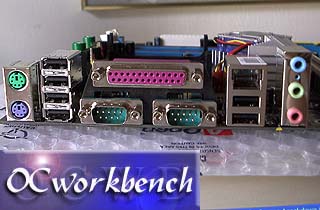

The AGP slot is mounted with a special slider for AGP card retention. PS/2 Mouse, keyboard, 4 USB 2.0 ports. Parallel port, Com 1, 2, LAN, 2 USB 2.0 ports, audio ports.
