AOPEN AX4C Max i875 Canterwood Mainboard Gallery (3)
Overclocker 16 Apr 2003

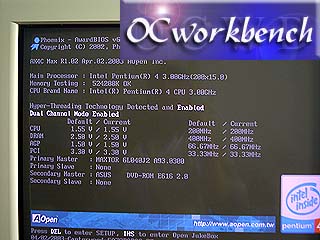

Boot Up Screen showing the BIOS R1.02 used, Hyperthreading is enabled, Dual Channel is used. The current CPU, DRAM, AGP, PCI voltages and its corresponding frequencies are shown during bootup. If you just wish to play an audio CD without going into Windows 98/ME/2000/XP, just press the INS (insert key) during boot up and you will be able to use the CD player within the BIOS to playback your audio CDs.

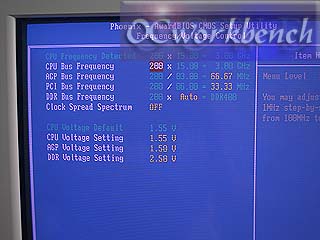

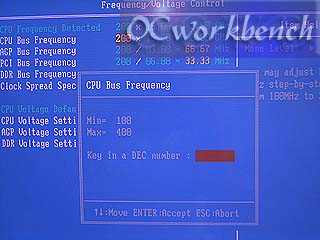

The FSB is selectable from 100 ~ 400Mhz. The PCI/AGP can be fixed at 33/66 or other pci/agp settings. 4 DIMM slots supporting up to 4GB of DDR266/DDR333/DDR400 using 184pin unbuffered ECC DDR allowing up to 6.4GB/s data transfer rate.

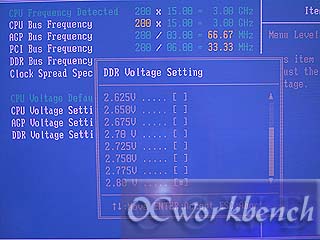

The PCI/AGP can be fixed at 33/66, DDR Bus frequency can be set to AUTO and at various ratios so that CPU can run at async 200mhz fsb, ram can run at 133, 166, 200Mhz. DDR voltage is selectable from 2.5 to 2.80v at 0.025v interval.

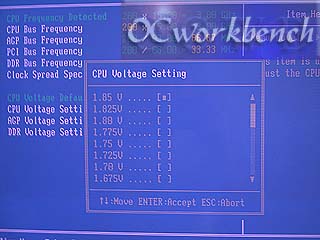

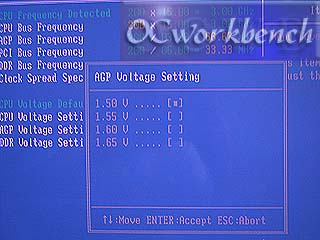

The AGP voltage can be selected from the choices above. CPU Vcore is selectable from 1.10v to 1.85v at 0.025v interval.
