AOPEN AX4C Max i875 Canterwood Mainboard Gallery (1)
Overclocker 16 Apr 2003

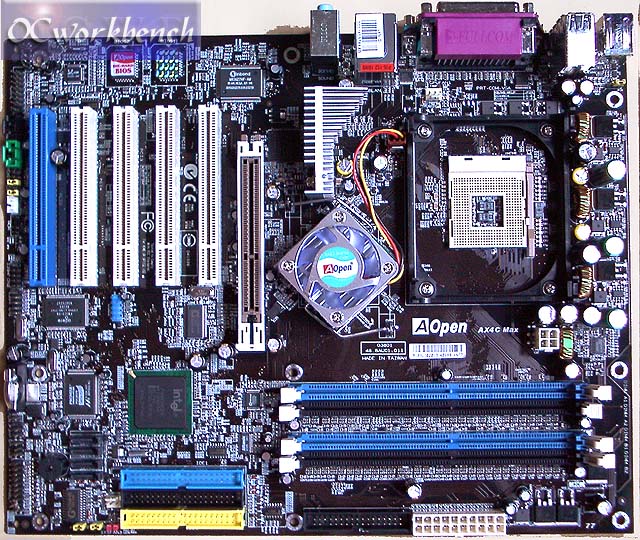

The Mainboard

This board features 4 SATA ports with RAID, Dual Channel DDR400, Die Hard BIOS, 6 channel audio, AOpen innovative Hercules PCI slot (Blue PCI slot), Broadcom Gigabit Ethernet, 1394.

Coming in a separate set of 3.3 volt power circuitry, HerculesPCI supplies needed current and making it virtually free from the “loading issue” of traditional PCI slot. In addition, traces around this specially designed slot power delivery are upgraded for making its signals much more robust than their fellow PCI slots onboard. When building machines with PCI cards, such as SCSI and RAID cards, the card installed on this slot will never be affected even when the board is fully populated. Hercules PCI keeps supplying you best performance and stability.

Box (Front)

Box (Back)

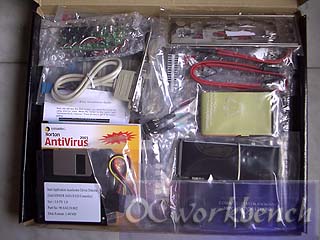

The package comes with the manual, CDROM and IDE cables,
SATA cables, S/PDIF bracket, 1394 bracket.
