AOPEN AK79G Max nForce2 Gallery (3)
Bluetooth 5 Mar 2003

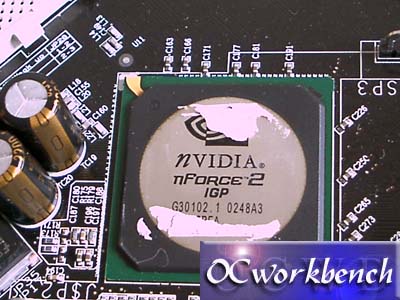

The nForce2 IGP chipset comes integrated with video on board. It supports 333Mhz fsb DDR400 and AGP 8X. Integrated 1394 controller and nVidia GeFroce4MX Graphics.

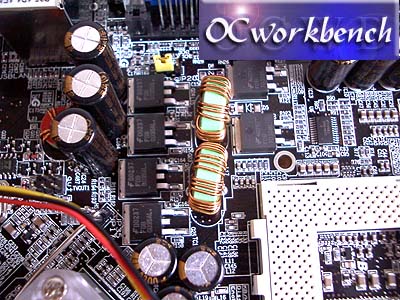

6 MOSFETs are used in voltage regulation. A 3 phase design is used.

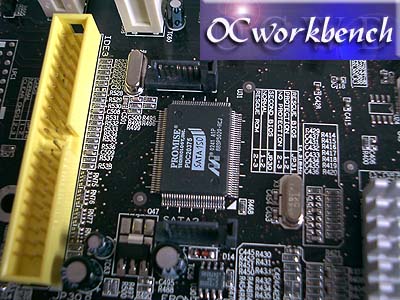

The Promise SATA150 chipset PDC20375 controls SATA with 2 SATA ports and 1 single channel of IDE. (Update: it does not have RAID function)

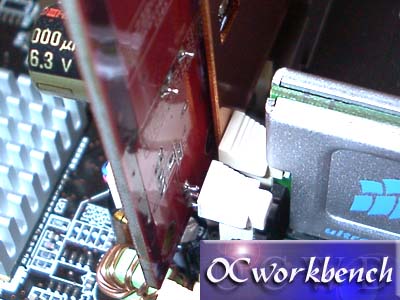

The graphics card used here is MSI GF4 Ti4200-8X and the backplate of the graphics card just slids in nicely. it would be better for the AGP slot to be shifted left so that the DIMM slot will be further away from it.
