AOPEN AK79G Max nForce2 Gallery (4)
Bluetooth 5 Mar 2003

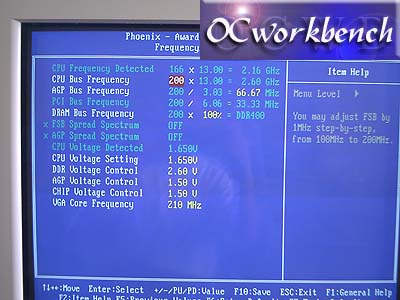

The AOPEN AK79G Max has a rich BIOS (BIOS ver 1.00D). Below is a screen shot of the most important BIOS setting. The Frequency and Voltage controls. There is no multiplier control at this moment.

CPU Frequency : 100 ~ 200 (1mhz stepping)
AGP Freq fixed at 66, PCI fixed at 33
DRAM Bus frequency : Various async settings
CPU Voltage Control : 1.10v ~ 1.85v at 0.025v interval
DDR Voltage Control : 2.5 ~ 2.8 at 0.1v interval
AGP Voltage Control : 1.50v ~ 1.65v at 0.05v interval
CHIP Voltage Control : 1.4v ~ 1.7v at 0.1 interval
VGA Core Frequency : 210Mhz ~ 250Mhz at 1Mhz stepping

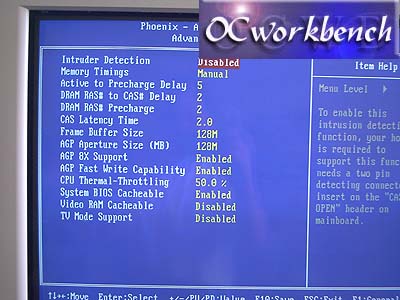

In our tests, we set the two modules to run at CAS 2, 2-2-5, AGP Aperture 128M

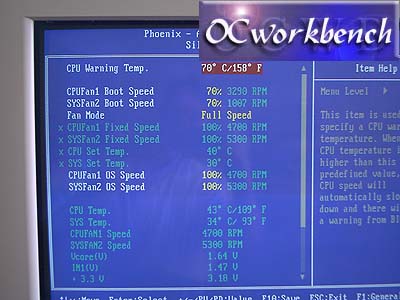

The BIOS allows the CPU fan speed to be throttled based on %tage level of the CPU temperature.
