ABIT NF7-S v1.2 nForce2 Mainboard (4)
Overclocker 5 Apr 2003

Benchmarking

FPU test (fsb:166, AXP2700+)

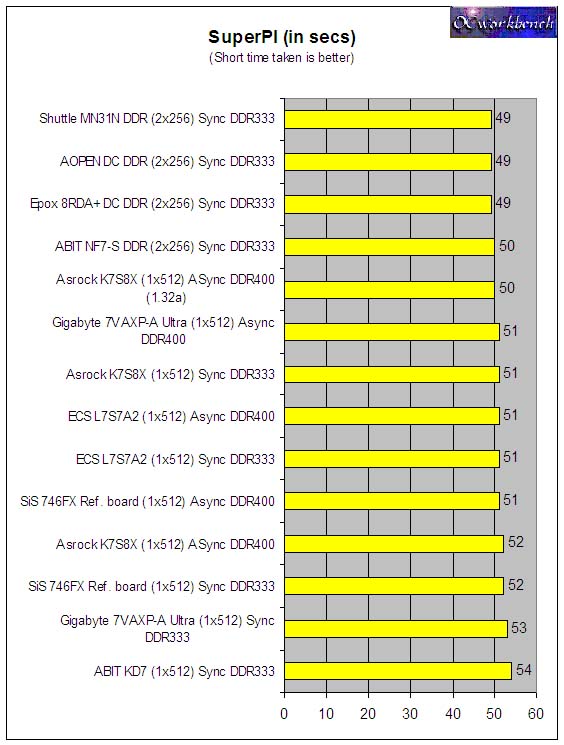

SuperPI

SuperPI is a good test of system stability and also the arithmetic power of the system. The shorter the time taken, the better the performance.

All boards running in SYNC DDR333 (166/166) otherwise specified. The FSB of the various boards are :

Shuttle MN31N : 167.05Mhz
ABIT NF7-S v1.2 : 166.36Mhz
Gigabyte 7VAXP-A Ultra : 166.92Mhz
AOpen AK79G Max : 167.04Mhz
ASROCK K7S8X : 166.64Mhz
ECS L7S7A2 : 166.65Mhz
SiS 746FX Ref board : 168.2Mhz
EPoX 8RDA+ : 167.05Mhz
ABIT KD7 : 166.88Mhz

All the 4 nForce2 boards scores 49s - 50s in SuperPI 1M test. There is no doubt that the dual channel boards are indeed slightly faster than the KT400A and SiS 746FX boards by a close margin.
