ABIT NF7-S v1.2 nForce2 Mainboard (5)
Overclocker 5 Apr 2003

Benchmarking

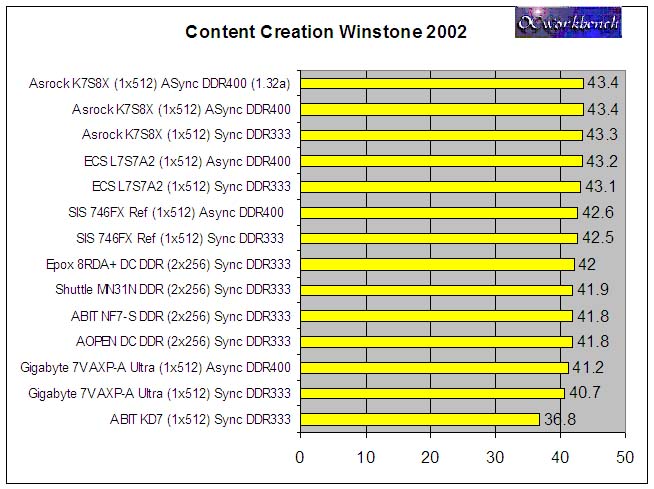

ZD Content Creation 2002

Content Creation Winstone is a system-level, application-based benchmark that measures a PC's overall performance when running top, Windows-based, 32-bit, content creation applications on Windows 98, Windows 2000, Windows Me, or Windows XP. Content Creation Winstone 2002 uses the following applications:

  • Adobe Photoshop 6.0.1
  • Adobe Premiere 6.0
  • Macromedia Director 8.5
  • Macromedia Dreamweaver UltraDev 4
  • Microsoft Windows Media Encoder 7.01.00.3055
  • Netscape Navigator 6/6.01
  • Sonic Foundry Sound Forge 5.0c (build 184)

Following the lead of real users, Content Creation Winstone 2002 keeps multiple applications open at once and switches among those applications. Content Creation Winstone 2002 is a single large test that runs the above applications through a series of scripted activities and returns a single score. Those activities focus on what we call "hot spots," periods of activity that make your PC really work--the times where you're likely to see an hourglass or a progress bar.

All boards running in SYNC DDR333 (166/166) otherwise specified. The FSB of the various boards are :

Shuttle MN31N : 167.05Mhz
ABIT NF7-S v1.2 : 166.36Mhz
Gigabyte 7VAXP-A Ultra : 166.92Mhz
AOpen AK79G Max : 167.04Mhz
ASROCK K7S8X : 166.64Mhz
ECS L7S7A2 : 166.65Mhz
SiS 746FX Ref board : 168.2Mhz
EPoX 8RDA+ : 167.05Mhz
ABIT KD7 : 166.88Mhz

In this test, ASROCK K7S8X secures the top position in performance in Content Creation. It can be confirmed that the SiS 746 and 746FX boards does perform very well in this category. The nForce2 and KT400A boards seems to be slower in this aspect. This could be due to a poorly written IDE driver.
