ABIT BH7 Intel 845PE
Gallery (2) Overclocker 19 Mar 2003

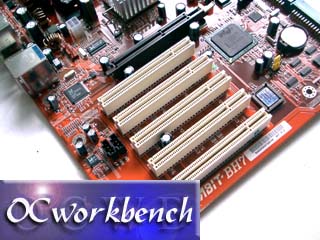

Top Right Corner of the mainboard. From here we can see 5
PCI slots and 1 AGP slot. The on board audio codec used is Realtek ALC650
6 channel. LAN chip RTL801L. On the far left is the ATX12V square plug

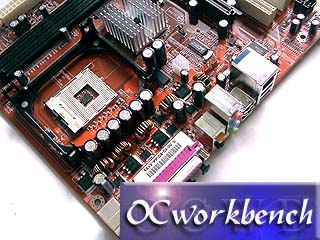

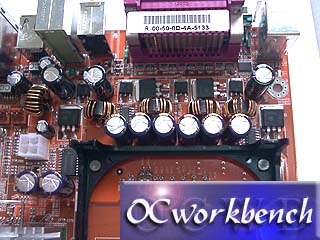

We can see the back panel and the P4 Socket 478. Around the
socket is the 4 phase power designed for overclocking in mind.

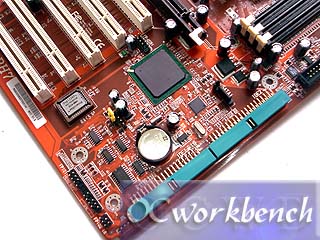

2 channels of IDE ATA100/66/33 can be mounted horizontally
on the left rear of the mainboard. There is also a single channel of
ATA150 SATA on board.

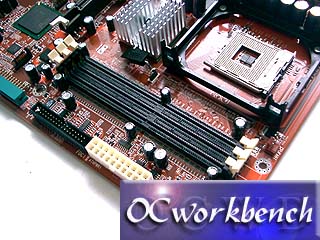

3 DIMM slots supporting up to 2GB of DDR333 or 3GB of
DDR200/266. The power connector is right below the DIMM slots.
ABIT BH7 comes with the necessary audio input/output
connectors at the rear. Next to COM1 is Opt1 (S/PDIF In) and Opt2 (S/PDIF
Out). 4 USB ports and 1 x 10/100Mbps LAN port are available.
BH7 uses well acclaimed highly acclaimed Japanese Rubycon
capacitors around the board.

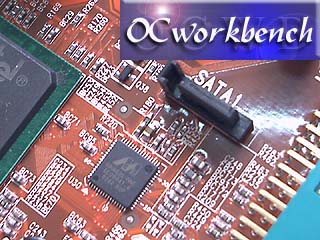

SATA connector supported by Marvell SATA chipset

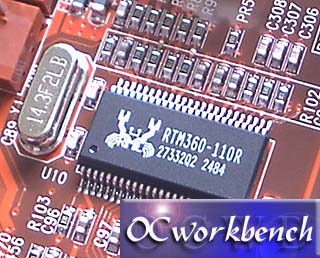

ClkGen of ABIT BH7 - Realtek RTM360-1102 which supports up
to 250Mhz FSB.
