ABIT BH7 Intel 845PE
Gallery (3) Overclocker 19 Mar 2003

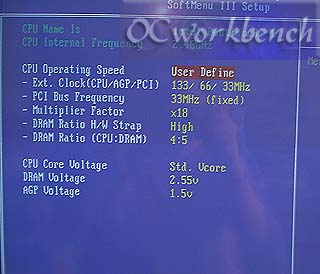

ABIT's SoftMenu III appears on the BH7.
Over at this screen, you can adjust the FSB , DRAM Ratio, Voltages of CPU,
DRAM and AGP.

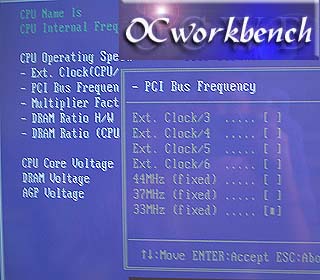

The PCI bus frequency is selectable from
100Mhz to 250Mhz at 1Mhz stepping. On top of that, you could choose to FIX
the PCI devices to run at 44, 37 or 33mhz irregardless of what FSB is the
system running at. You can of course choose to use the 1/3, 1/4, 1/5 or
1/6 divider for your PCI frequency.
DRAM Voltage is selectable
from the options above.

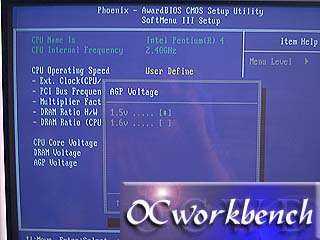

AGP voltage is selectable
between 1.5v and 1.6v

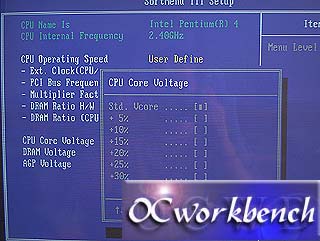

CPU Vcore can be pumped up to 30% of its
default. Options are as above.

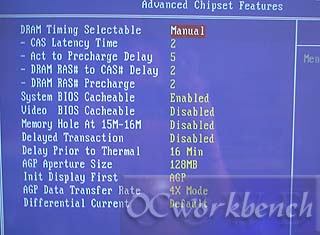

In our test, we set it to
run at cpu:mem at 133/166. CAS 2, 5-2-2, AGP Aperture : 128M.
