SOYO KT333 Dragon Ultra Gallery (5)
Overclocker 22 Apr 2002

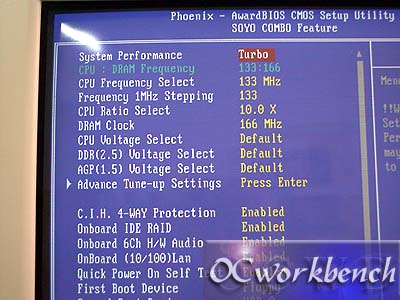

The BIOS has a number of selections which allows you to tune up the performance of your system. In our tests, we try to put the system to its utmost performance by settings it to Turbo, DRAM clock is also set to operate async DDR333 (166Mhz). The Advance Tune-up Settings allows more tuning of the performance.

CPU Frequency Select : 100 ~ 255 1Mhz stepping
CPU Ratio Select : auto, 6x ~ 14x
CPU Voltage 1.100v ~ 1.850v at 0.025v intervals
DDR Voltage : Default, 2.6v, 2.7, 2.8v
AGP Voltage Default, 1.6, 1.7, 1.8v

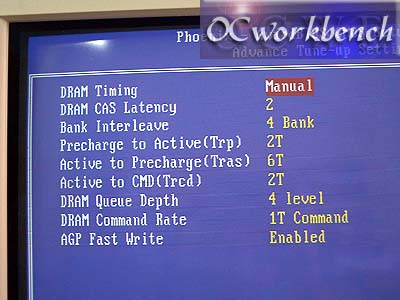

Under the advance tuneup, we set it to CAS 2, 4 Bank, 2,6,2. 4 level DRAM Queue Depth. 1T command and AGP Fast Write is set to enabled. This BIOS only has 6T and 7T for Active to Precharge (Tras). Most BIOS have 5T which will speed up the system if set to 5T.
