SiS745 Reference Board Gallery (2) / SiS745 工程板图片集
Overclocker 28 Feb 2002

BIOS settings

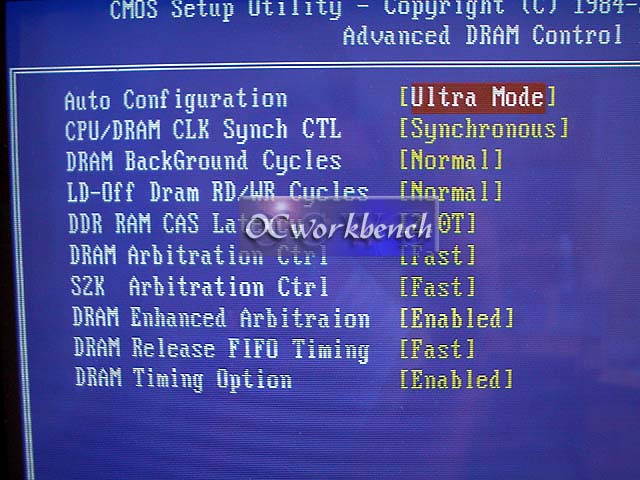

Similar to the ECS K7S6A and Chaintech 7SJR, the reference BIOS is based on AWARD BIOS. In our setup, we configure it to the ultimate timings we could. This of course needs some trial and error. We configure it as below :

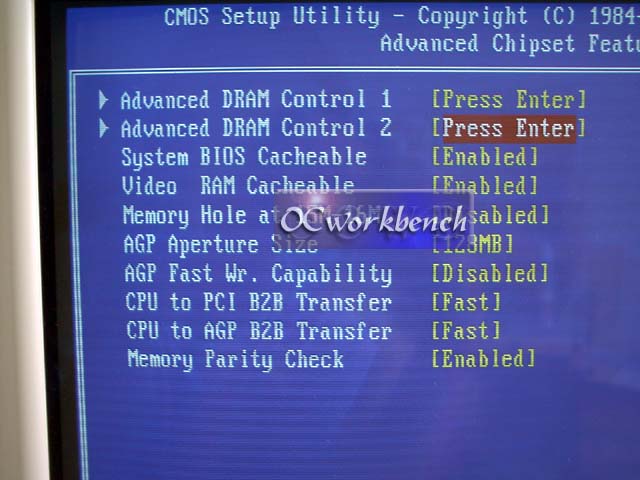

As all the boards are tested with AGP Aperture size of 128MB, we set it to 128MB here too. Surprisingly, with AGP fast write disabled, the AGP performance is slightly faster.

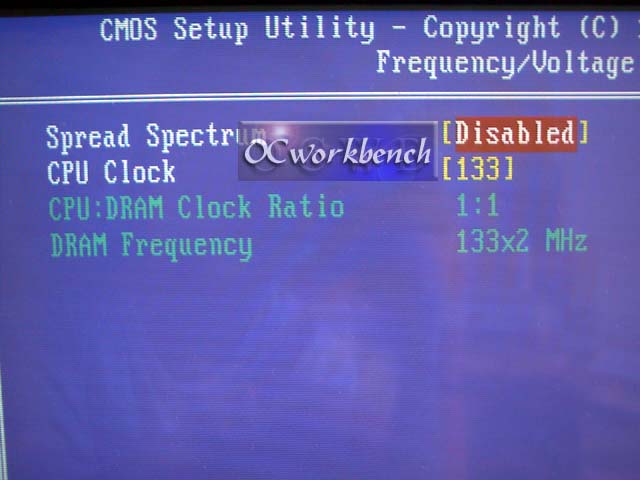

The reference BIOS provided allows us to change the FSB from 133 up to 165Mhz at 1Mhz intervals. There are no voltage settings. The CPU:DRAM clock ratio is locked at 1:1 which does not allow us to test the board at 266/333 async mode.

Benchmark Results
