SiS 645DX Reference Board (7)
Overclocker 4 March 2002

SiS645DX

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

• Intel Pentium 4 ES 1.5Ghz
• ThermalTake heatsink/fan
• IBM 13.5GB 7200 RPM HD
• MSI Geforce3 Ti200
• 512MB Winbond DDR333 DDR
• IBM 20G ATA100 HD
• Windows 2000 + SP2
• SiS1.09m AGP/IDE drivers

In our tests, we ran the system under 3 modes. Sync 133 optimised, Async 133/166 optimised and Async 133/200. At 133/166 (DDR333), ram timings are CAS2 Ultra, at 133/200 (DDR400), ram timings are CAS 2 Fast. The rest are at defaults. We will investigate the results of the various benchmarking softwares followed by 3D benchmarking in pages 6 and 7.

• 3DMark2001 SE
• Quake 3 Demo1

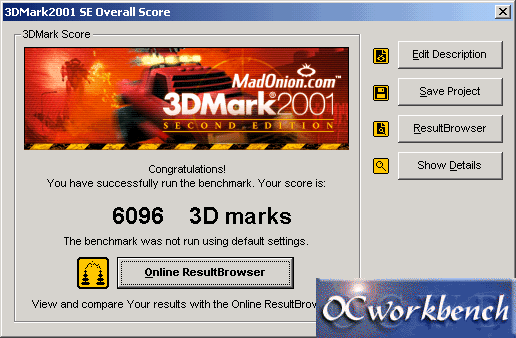

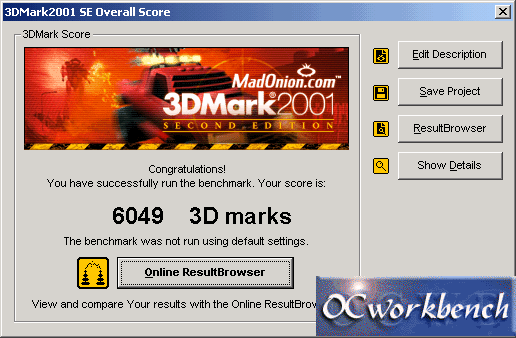

3DMark2001 SE

Summary

The results are as tabulated below. The differences aren't that much. We will look at the Quake 3 results and see if there are any differences since Quake3 is not a synthetic benchmark. For Q3, the results obtained based on a P4 1.5G is even better than that of a AthlonXP1500+. We can see a difference of 5% improvement (base on Q3 demo1 fastest) when running it at DDR400 (ram timings are Fast).

Next
