MSI KT3 Ultra ARU (5)
 Overclocker 19 Feb 2002

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

  • AMD AthlonXP 1500+ and Thermoengine heatsink/fan
  • Maxtor 40G ATA133 HD
  • AOPEN 40X CDROM
  • MSI Geforce3 Ti200 Graphics card
  • Nanya DDR333 256MB DDR
  • Channelwell 375W AMD Approved PSU

3DMark2001

DDR266

DDR333

Summary

AthlonXP1500+

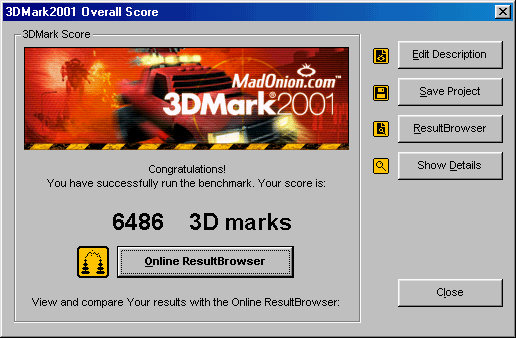

We benchmark the board using a MSI Geforce3 Ti200 graphics card with the detonator 21.83 drivers. At DDR333 (133/166), it scores 6486.  At DDR266 (133/133), the score is 6453. The difference is only 2.5% which is not a lot. In fact, MSI seems to have optimised in it's 3D performance then on content based applications. The results are on par with the Gigabyte 7VRXP. The DDR333 score of 6486 is definitely better as it is run at 1Tcmd compared to 2T on 7VRXP.

  MSI KT3 Ultra ARU DDR266 Cas2 1T cmd MSI KT3 Ultra ARU DDR333 Cas2 1T cmd Gigabyte 7VRXP DDR266 Cas2 1T cmd Gigabyte 7VTXH+ DDR333 Cas2 2T cmd Gigabyte 7VTXH+ Cas2 1T cmd ABIT KR7A CAS2 1Tcmd, Ultra EPoX 8KHA+ CAS2,1Tcmd
3Dmark2001 6453 6486 6445 6461 6423 6427 6431



  Iwill XP333 v2.0 CAS2 FAST ECS K7S6A  Ultra timings Leadtek 7350KDA Ultra timings
3Dmark2001 6303 6375 6399

FSB

MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 133.34Mhz
ABIT KR7A = 133.38Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
