| | MSI 745Ultra SiS745 Review (2)
Overclocker 25 Mar 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- AMD AthlonXP 1500+ and Thermoengine heatsink/fan
- IBM 15G 7200RPM ATA100 HD
- AOPEN 40X CDROM
- MSI Geforce3 Ti200 Graphics card
- Nanya DDR333 256MB DDR
- Channelwell 375W AMD Approved PSU
We used the BIOS supplied with the mainboard. We took the readings off WCPUID which shows
133.34Mhz. The system runs at CAS 2, Turbo. Other timings 2,5,2,2 as documented
in gallery (2).

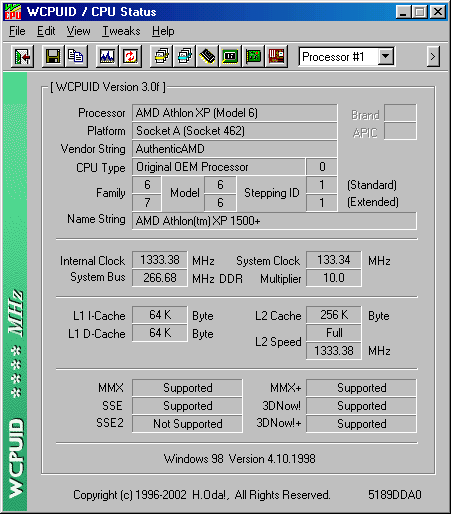

WCPUID Screen Shot

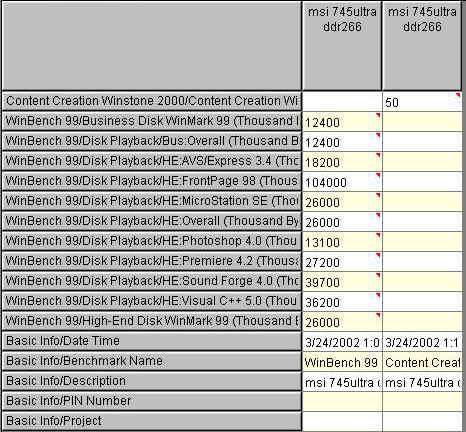

ZD Winbench99 and CC
Winstone 2000 scores
Summary
Based on the AthlonXP1500+
The score of 50 points in fact overtook some of
the fastest KT333 and KT266A boards we tested. As we previously tested the other
SiS745 boards using an IBM ATA-100 HD instead of Maxtor ATA-133 HD (on ATA-100
interface), you can see the vast difference in Business Disk Winmark and HighEnd
Disk Winmark results.
I noticed that the disk performance of SiS745
ATA-100 is not very far off from KT333's ATA-133. (12400,26200) vs (13200,
27300).
From the looks of it, the MSI 745 Ultra at max.
timings does perform on par with the KT333 at DDR266/333 in the content creation
benchmarks
| |
Iwill
XP333 v2.0 CAS2 Fast |
MSI
745 Ultra Turbo Cas2 timings |
ECS
K7S6A Ultra timings |
SiS745
Ref Board Ultra timings |
Leadtek
7350KDA Ultra timings |
ECS
K7S5A Ultra timings |
| CC
Winstone2000 |
48.5 |
50 |
49.1 |
49.1 |
46.2 |
46.1 |
| CPUMark99 |
124 |
- |
- |
- |
125 |
123 |
| FPUmark99 |
7230 |
- |
- |
- |
7240 |
7260 |
| Business
Disk Winmark |
6790 |
12400 |
7810 |
7810 |
6260 |
8630 |
| High
End Disk Winmark |
23100 |
26200 |
22400 |
22400 |
20800 |
24800 |
| |
Shuttle
Ak35GTR v2.x
1T cmd, Cas2, Ultra DDR333 |
MSI
KT3 Ultra ARU
1T cmd, Cas2, Ultra DDR266 |
MSI
KT3 Ultra ARU
1T cmd, Cas2, Ultra DDR333 |
Gigabyte
7VRXP
1T cmd, Cas2, Ultra DDR266 |
Gigabyte
7VRXP
2T cmd, Cas2, Ultra DDR333 |
Shuttle
Ak35GTR 1T cmd Cas 2 |
Gigabyte
7VTXH+
1T cmd, Cas2 |
ABIT
KR7A
RAID CAS2, 1Tcmd,CPU
Fast Command decode Ultra |
EPoX
8KTA+ Cas2,1T
CMD |
Shuttle
AK31 v3.1
Peformance Defaults |
MSI
K7T266
Pro2-RU High Performance Defaults |
| CC
Winstone2000 |
50.5 |
48.7 |
49.5 |
50.2 |
49.7 |
49.8 |
49.8 |
49.1 |
48 |
48 |
46.2 |
| CPUMark99 |
- |
- |
- |
- |
- |
- |
- |
128 |
126 |
125 |
126 |
| FPUmark99 |
- |
- |
- |
- |
- |
- |
- |
7290 |
7300 |
7270 |
7290 |
| Business
Disk Winmark |
12800 |
13000 |
12900 |
13100 |
13200 |
8080 |
13330 |
6930 |
5660 |
7410 |
7190 |
| High
End Disk Winmark |
27200 |
27500 |
27600 |
26800 |
27300 |
22800 |
27400 |
23100 |
22500 |
25700 |
24400 |
FSB
MSI 745Ultra = 133.34Mhz
Shuttle AK35GTR v2.2 = 133.5Mhz
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
