MSI 745Ultra SiS745 Review (3)
Overclocker 25 Mar 2002

<A target="_top" HREF="http://www.burstnet.com/ads/ad5180a- map.cgi/CACHEBUSTING_NUMBER"> <IMG SRC="http://www.burstnet.com/cgi- bin/ads/ad5180a.cgi/CACHEBUSTING_NUMBER" width="32" height="32"> border="0" width="468" height="60" alt="Please support our sponsor."> </A>

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

AMD AthlonXP 1500+ and Thermoengine heatsink/fan
IBM 15G 7200RPM ATA100 HD
AOPEN 40X CDROM
MSI Geforce3 Ti200 Graphics card
Nanya DDR333 256MB DDR
Channelwell 375W AMD Approved PSU

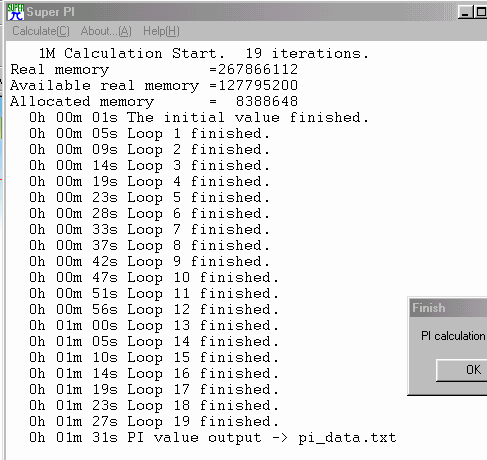

SuperPI

Summary

Based on the AthlonXP1500+

1m31s seems to be the average score for all the SiS735/SiS745 boards. It's noticeable that the KT266A and KT333s are around 1m 30s ~ 1m 27s. Comparing it to SiS745 ref board, MSI 745Ultra isn't tuned to perform as fast as the SiS745 ref board.

	Iwill XP333 v2.0 CAS2 Fast	MSI 745Ultra Turbo timings	ECS K7S6A Ultra timings	SiS745 Ref board Ultra timings	Leadtek 7350KDA Ultra timings	ECS K7S5A Ultra timings
Super PI	-	1'31"	1'31"	1'30"	1'31"	-

	Shuttle AK35GTR v2.x 1T cmd, Cas2	Gigabyte 7VRXP DDR266 1T cmd, Cas2	Gigabyte 7VRXP DDR333, 1T cmd, Cas 2	Gigabyte 7VRXP DDR266 1T cmd, Cas2	Gigabyte 7VRXP DDR333, 2T cmd, Cas 2	Shuttle AK35GTR 1T cmd Cas2	Gigabyte 7VTXH+	EPoX 8KHA+ 1Tcmd, CAS2	ABIT KR7A RAID CAS2, 1Tcmd,CPU Fast Command decode Ultra	Shuttle AK31 v3.1 Peformance Defaults	MSI K7T266 Pro2-RU High Performance Defaults
Super PI	1'27"	1'30"	1'28"	1'30"	1'30"	1'30"	1'33"	1'30"	1'29"	-	-

FSB

MSI 745Ultra = 133.34Mhz
Shuttle AK35GTRv2.2 = 133.5Mhz
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
