MSI 745Ultra SiS745 Gallery (3)
Overclocker 25 Mar 2002

BIOS Screen Shots

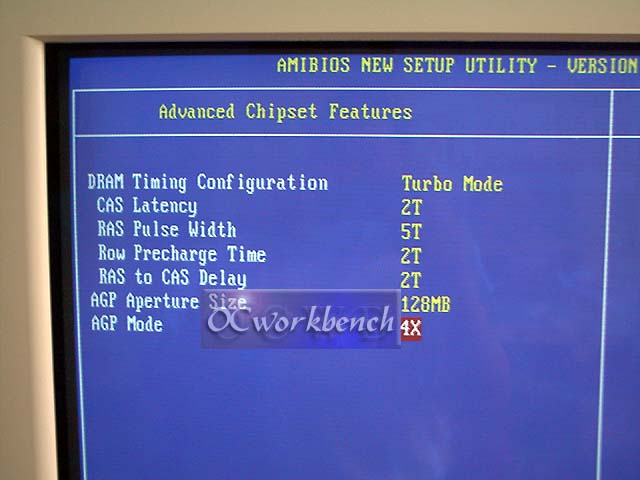

In our tests, we set the system to Turbo Mode. RAM timings to 2,5,2,2. AGP Aperture to 128MB and AGP mode= 4x

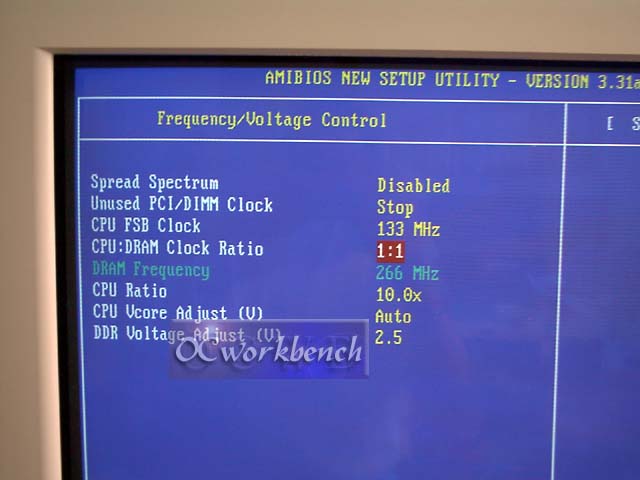

Under the frequency / voltage control, you can set the CPU FSB clock which ranges from 100 ~ 200 at 1Mhz Stepping.

CPU:DRAM Clock ratio

100~133 = 1:1,3:4
133~165 = 4:3,1:1,4:5
166~200 = 5:4,1:1

Multiplier is selectable from 6x ~ 15x. DDR Voltage Adjust from 2.5 ~ 2.8 at 0.1v intervals.

In our tests, we used a AthlonXP1500+, AthlonMP1.2G. For the AthlonMP 1.2G, we were able to complete SuperPI and all benchmark tests stable at 166MHZ x 7.5.
