Gigabyte 8SG667 SIS 648 Mainboard Gallery (3)
Overclocker 14 Sept 2002

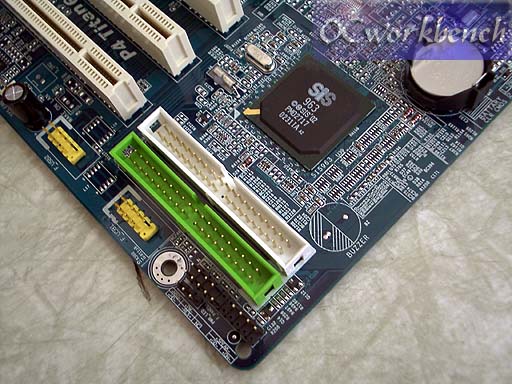

Close up photo of the IDE connectors, South bridge, USB connectors and the front panel connectors.

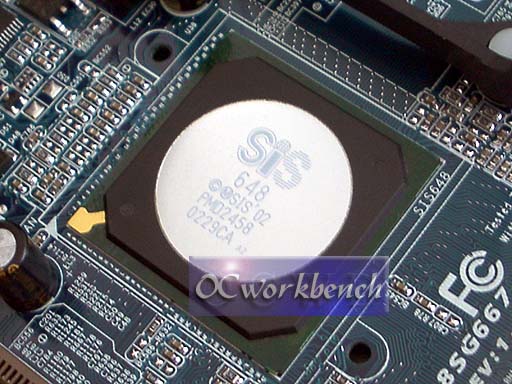

SiS 648 South bridge Week 29 A2 revision

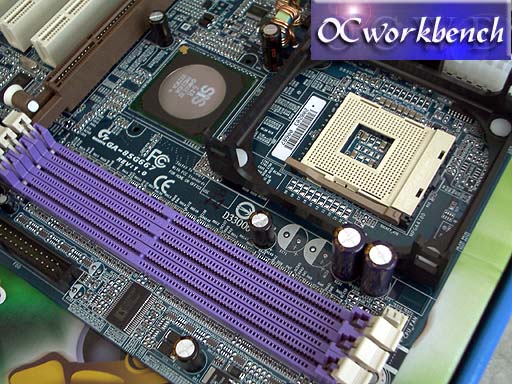

3 DIMM Slots and the P4 CPU socket

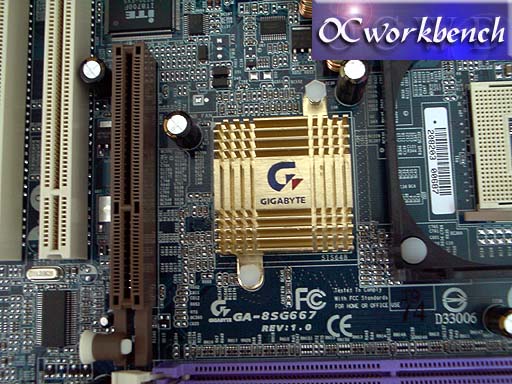

The golden heatsink which is attached using a double sided thermal tape. We removed it and replaced it with thermal paste. The AGP retention unit is easier to use than the conventional clip based units.
