Gigabyte 8SG667 SIS 648 Mainboard Gallery (4)
Overclocker 14 Sept 2002

BIOS settings

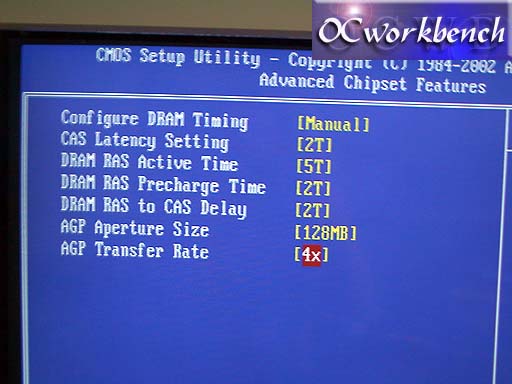

The advanced chipset features page is hidden. You have to press CTRL+F1 to open up this menu from the CMOS setup mainpage. Over this page, you can set the DRAM timing as AUTO or MANUAL. In Manual mode, you can set the ram timings. In our case, we ran our Corsair XMS3200 at two different settings.

1) CAS 2. 2-2-5 and
 2) CAS 2.5 3-3-6

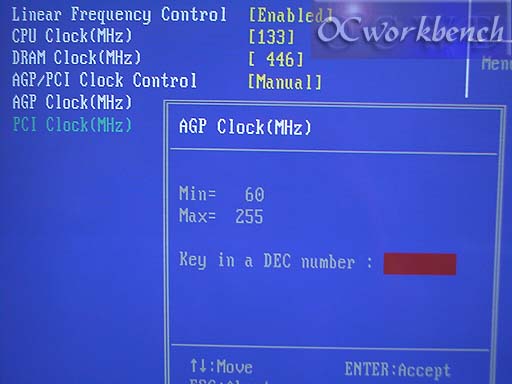

CPU Clock or FSB has a wide range from 100 ~ 355Mhz at 1Mhz stepping. DRAM Clock is also selectable from a wide range (this is easier than choosing cpu:mem ratios). The AGP Clk can also be fixed at 66Mhz, PCI at 33Mhz.

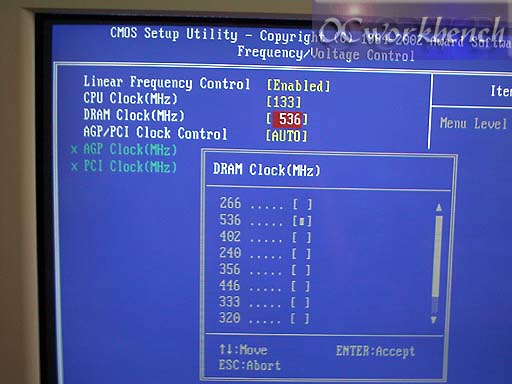

The DRAM Clock which is set Async to the CPU clock
