Gigabyte 8SG667 SIS 648 Mainboard Gallery (2)
Overclocker 14 Sept 2002

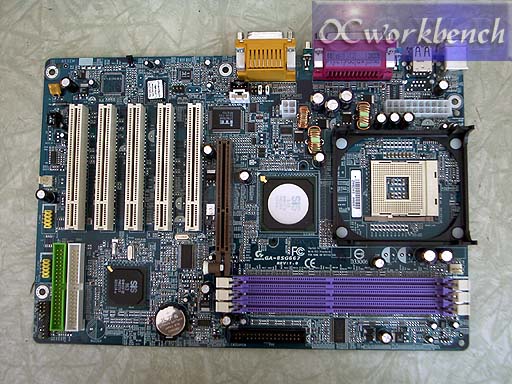

GA-8SG667 is very simple in design. There is no LAN, RAID, no Firewire on board. S-ATA is also not available.

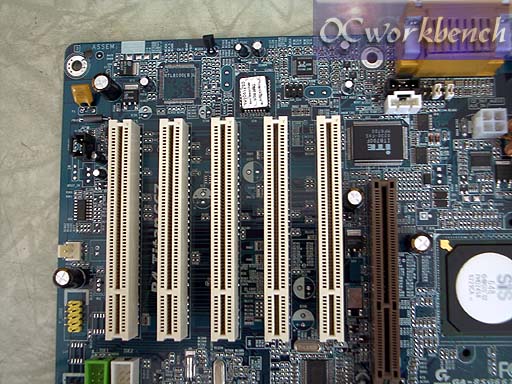

5 PCI slots + 1 AGP Slot. A single BIOS instead of Dual BIOS. 6 ch audio using Realtek chip ALC650

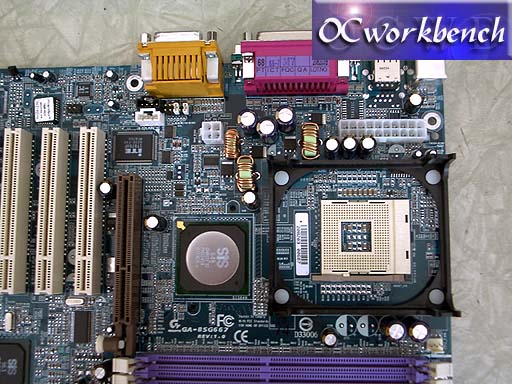

IT8700 I/O chip. SiS 648 North Bridge. AGP slot supporting 4x/8x AGP cards.

3 DIMM slots supporting DDR400*/DDR333/266/200. *Gigabyte verifies the following brands of DDR400 to work well on the board.

Samsung Korea 0226 PC3200U_30440-A1, M368L3223DTM-CC4,
256M DDR PC3200 CL3, SAMSUNG 223 K4H5608838D-TCC4

ADATA 256M DDR PC3200 Winbond 2260D W942508BH-5

Winbond 2110A W942508BH-5, Winbond 2150D W942508HB-5

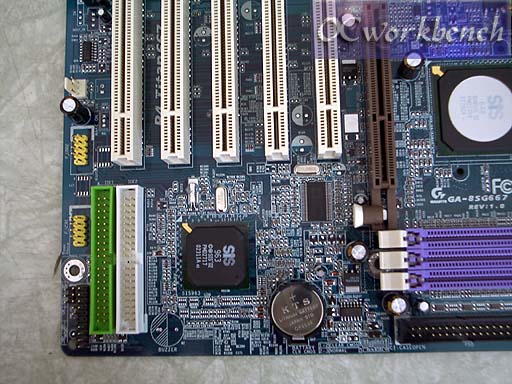

ATA-133 IDE connector and USB connectors (yellow), 963 South Bridge
