Gigabyte 7VRXP (3)
Overclocker 12 Feb 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- AMD AthlonXP 1500+ and Thermoengine heatsink/fan
- Maxtor 40G ATA133 HD
- AOPEN 40X CDROM
- MSI Geforce3 Ti200 Graphics card
- Nanya DDR333 256MB DDR
- Channelwell 375W AMD Approved PSU

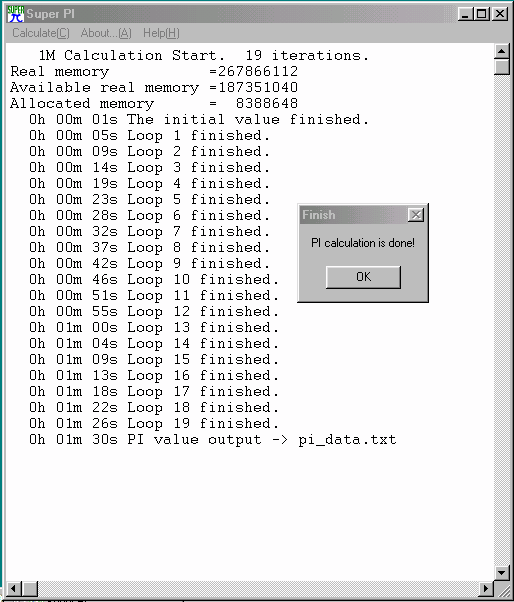

SuperPI
Summary
Based on the AthlonXP1500+
Update : With the F6e BIOS,
we attained a score of 1m27s at DDR333.
It's not surprising that when we run at either
DDR266 or DDR333, the scores of DDR333 is just like DDR266 as we are only able
to execute SuperPI steadily at 2T cmd. We run DDR266 at 1T cmd which is faster.
| |
Gigabyte
7VRXP DDR266 1T cmd, Cas2 |
Gigabyte
7VRXP DDR333, 2T cmd, Cas 2 |
Gigabyte
7VTXH+ |
EPoX
8KHA+ 1Tcmd,CAS2 |
ABIT
KR7A RAID CAS2, 1Tcmd,CPU
Fast Command decode Ultra |
Shuttle
AK31 v3.1
Peformance Defaults |
MSI
K7T266Pro2-RU High Performance Defaults |
| Super
PI |
1'30" |
1'30" |
1'33" |
1'30" |
1'29" |
- |
- |
| |
Iwill
XP333 v2.0 CAS2 Fast |
ECS
K7S6A timings |
Leadtek
7350KDA Ultra timings |
ECS
K7S5A Ultra timings |
| Super
PI |
- |
1'31" |
1'31" |
- |
FSB
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
