Gigabyte 7VRXP
(4)
Overclocker 12 Feb 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- AMD AthlonXP 1500+ and Thermoengine heatsink/fan
- Maxtor 40G ATA133 HD
- AOPEN 40X CDROM
- MSI Geforce3 Ti200 Graphics card
- Nanya DDR333 256MB DDR
- Channelwell 375W AMD Approved PSU

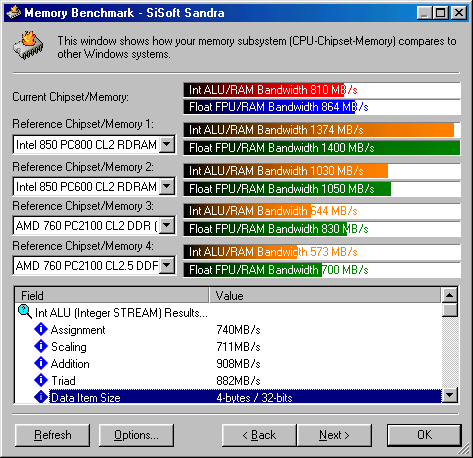

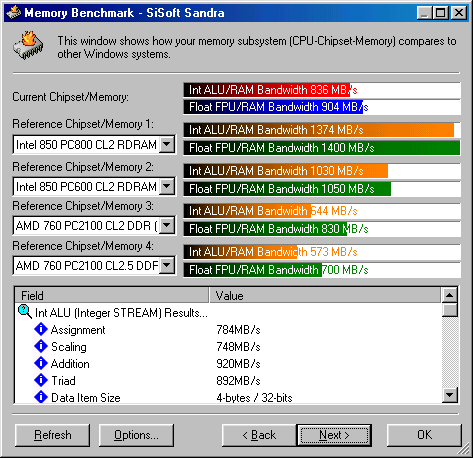

Sisoft Sandra 2001te
Benchmarks
DDR266
DDR333
Summary
AthlonXP1500+
Update : With the new F6e
BIOS, performance is increased as we are able to run it steadily at DDR 333 1T
cmd. CAS2.
When we took the benchmarks, we were surprised
that the KT333 benchmarks at DDR333 is on par with the KT266A. It looks like
DDR333 doesn't have much gain over DDR266.
| |
Gigabyte
7VTXH+ DDR266 Cas2, 1T cmd |
Gigabyte
7VTXH+ DDR333 Cas2, 2T cmd |
Gigabyte
7VTXH+ Cas2, 1T cmd |
ABIT
KR7A CAS2, 1T cmd, Ultra |
EPoX
8KHA+ CAS2,
1TCmd |
Shuttle
AK31 v3.1 Perfor
mance Defaults |
MSI
K7T266
Pro2-RU High Performance Defaults |

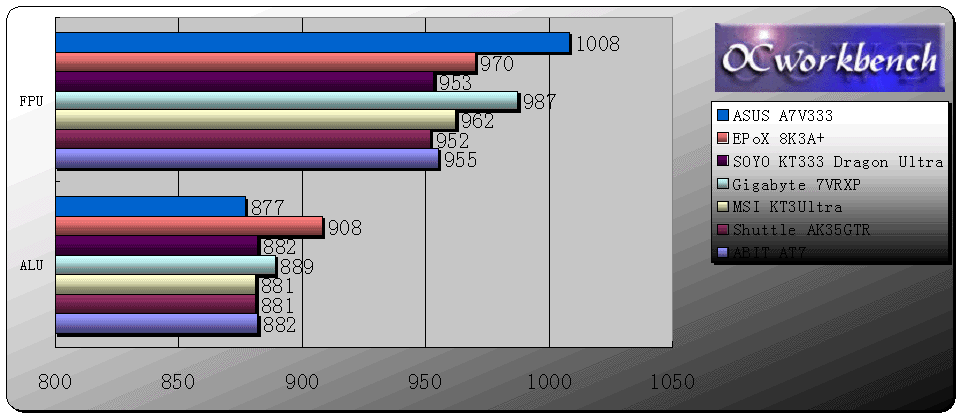

| SiSoft
Sandra Memory Benchmarks |
810/864 |
836/904 |
833/916 |
836/904 |
786/842 |
795
/ 857 |
837/898 |
| |
Iwill
XP333 v2.0 CAS2 Fast |
ECS
K7S6A Ultra timings |
Leadtek
7350KDA Ultra timings |
ECS
K7S5A
Ultra timings |
| SiSoft
Sandra Memory Benchmarks |
680/747 |
818/867 |
813/860 |
806/832 |
FSB
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A = 133.38Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
Next |
