Gigabyte 7VRXP (2)
Overclocker 12 Jan 2002

<A target="_top" HREF="http://www.burstnet.com/ads/ad5180a- map.cgi/CACHEBUSTING_NUMBER"> <IMG SRC="http://www.burstnet.com/cgi- bin/ads/ad5180a.cgi/CACHEBUSTING_NUMBER"> border="0" width="468" height="60" alt="Please support our sponsor."> </A>

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

AMD AthlonXP 1500+ and Thermoengine heatsink/fan
Maxtor 40G ATA133 HD
AOPEN 40X CDROM
MSI Geforce3 Ti200 Graphics card
Nanya DDR333 256MB DDR
Channelwell 375W AMD Approved PSU

Using the 1st official BIOS which is available for download from the Gigabyte website, we tested the board in both DDR266 and DDR333 Async (CPU=133Mhz, MEM=166Mhz) mode. We took the readings off WCPUID and noticed that at both modes, the WCPUID reveals 133.90Mhz FSB.

Updated 25 Apr 2002 with latest BIOS F6e

With the new bios F6e, the performance of 7VRXP is stable at 1T cmd running at Async DDR333 mode. Previously the system was unstable at that mode.

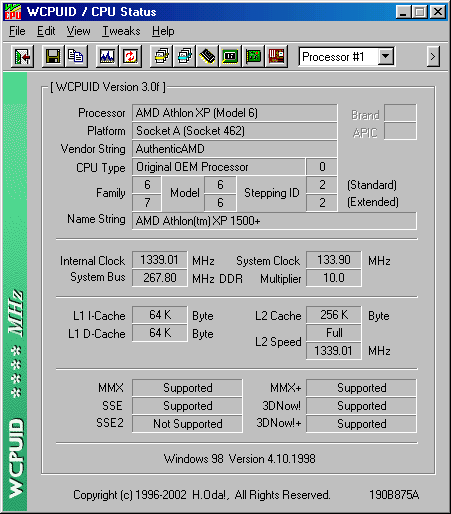

WCPUID Screen Shot

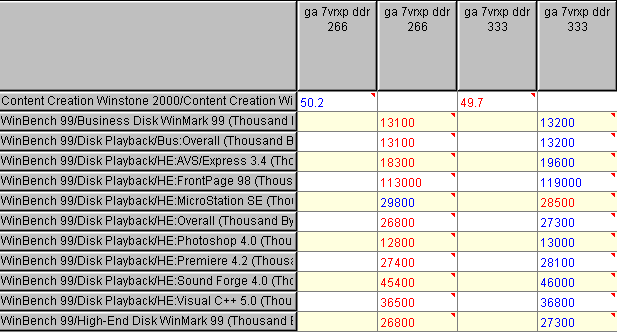

ZD Winbench99 and CC Winstone 2000 scores

Summary

Based on the AthlonXP1500+

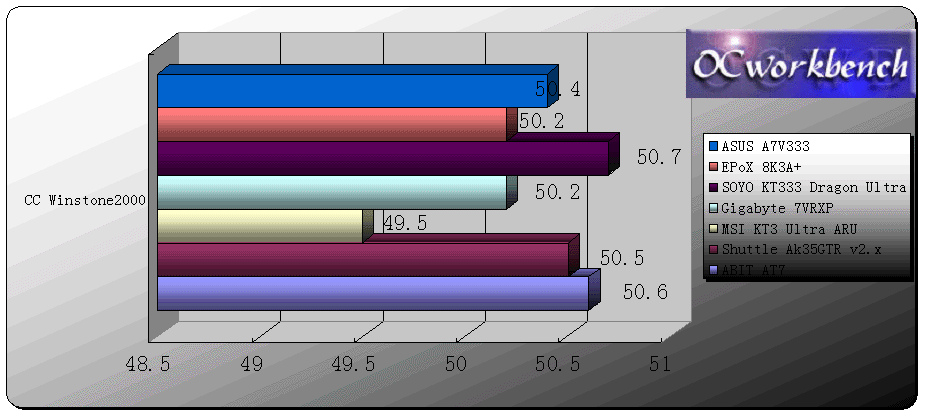

The table is a comparison of the results based on both 133/133 (DDR266) and 133/166 (DDR333) setting. A score of 50.2/49.7 is really impressive if compared to the other boards. The surprise came as when operating 7VRXP at DDR333, the CC Winstone2000 results dropped from 50.2 to 49.7. This is probably because we are unable to run DDR333 at 1T command. The score of 50.2 shows that KT333 does have an improvement over 7VTXH+ and faster than all the boards charted below.

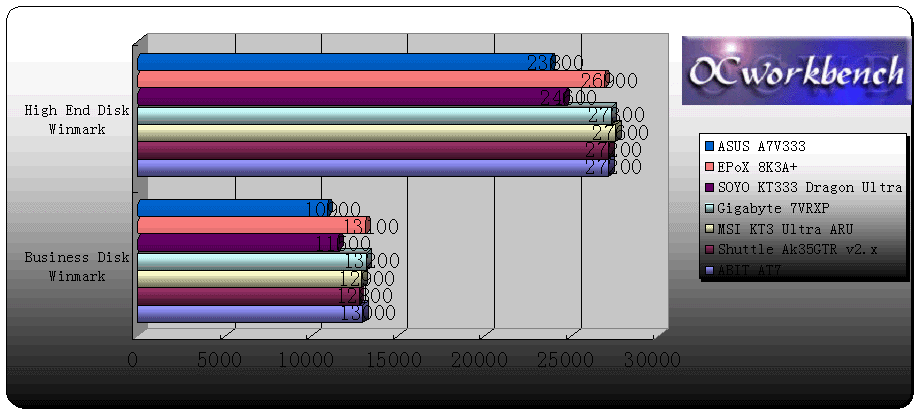

Disk benchmarks scores similarly to those of GA-7VTHX+. The test was done on a Maxtor ATA133 HD 7200RPM.

	Gigabyte 7VRXP 1T cmd, Cas2, Ultra DDR266	Gigabyte 7VRXP 2T cmd, Cas2, Ultra DDR333	Gigabyte 7VTXH+ 1T cmd, Cas2	ABIT KR7A RAID CAS2, 1Tcmd,CPU Fast Command decode Ultra	EPoX 8KTA+ Cas2,1T CMD	Shuttle AK31 v3.1 Peformance Defaults	MSI K7T266 Pro2-RU High Performance Defaults
CC Winstone2000	50.2	49.7	49.8	49.1	48	48	46.2
CPUMark99	-	-	-	128	126	125	126
FPUmark99	-	-	-	7290	7300	7270	7290
Business Disk Winmark	13100	13200	13330	6930	5660	7410	7190
High End Disk Winmark	26800	27300	27400	23100	22500	25700	24400

	Iwill XP333 v2.0 CAS2 Fast	ECS K7S6A Ultra timings	Leadtek 7350KDA Ultra timings	ECS K7S5A Ultra timings
CC Winstone2000	48.5	49.1	46.2	46.1
CPUMark99	124	-	125	123
FPUmark99	7230	-	7240	7260
Business Disk Winmark	6790	7810	6260	8630
High End Disk Winmark	23100	22400	20800	24800

FSB

Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
