Gigabyte 7VRXP Gallery (2)
Overclocker 11 Feb 2002

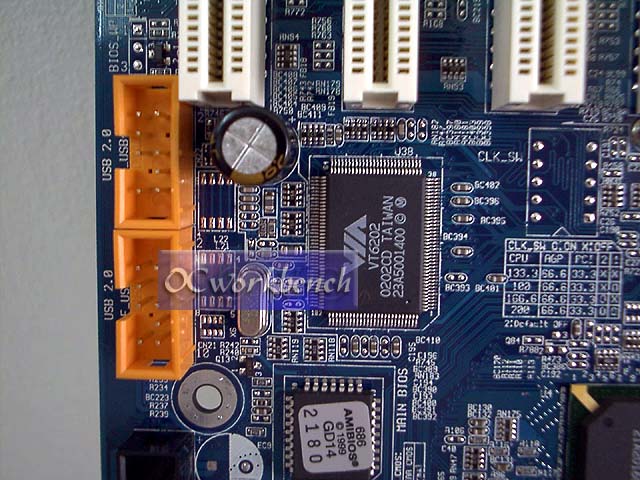

VIA VT6202 USB 2.0 controller is used for USB2.0 support instead of the familiar NEC controller chip found on other boards.

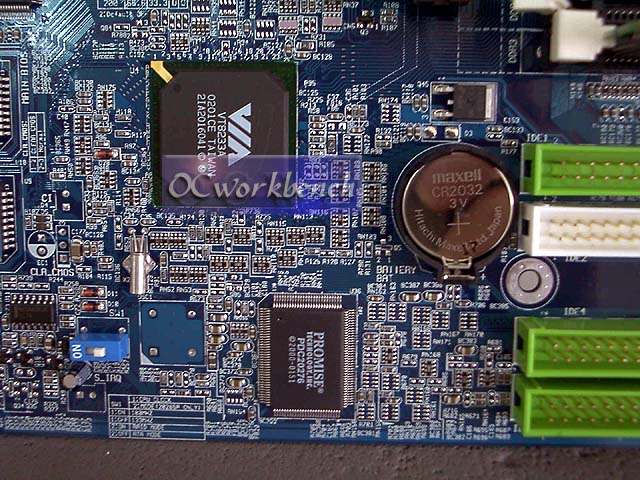

VT8233A south bridge for ATA-133 support. The Promise PDC20276 supports ATA133  IDE RAID 0, 1, 0+1.

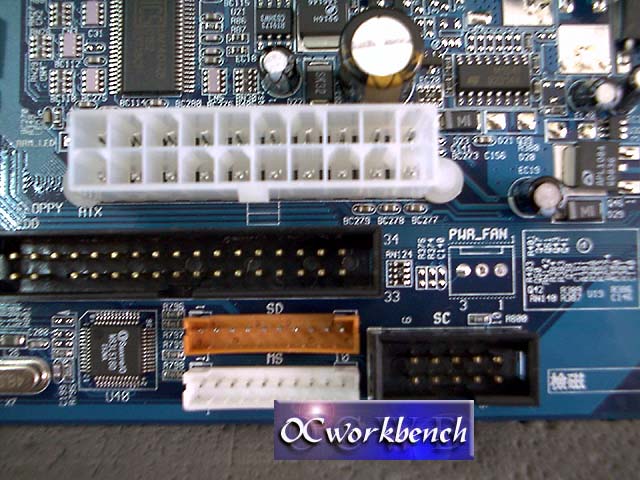

The photo below shows the ATX connector, floppy drive connector. The other 3 connectors SD, MS and SC are the Memory Stick, Security Digital (MMC) and Smart Card Reader connectors.

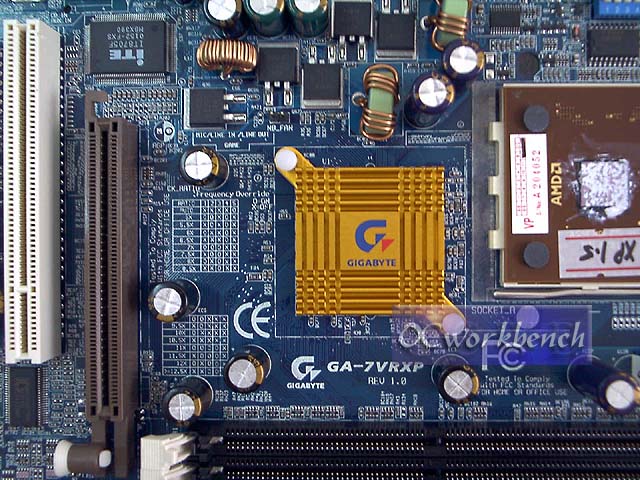

The frequency override is what we know as multiplier settings for the CPUs. On the silkscreen, you can see the various on / off states for the dip switch located at the top right hand corner of the mainboard.

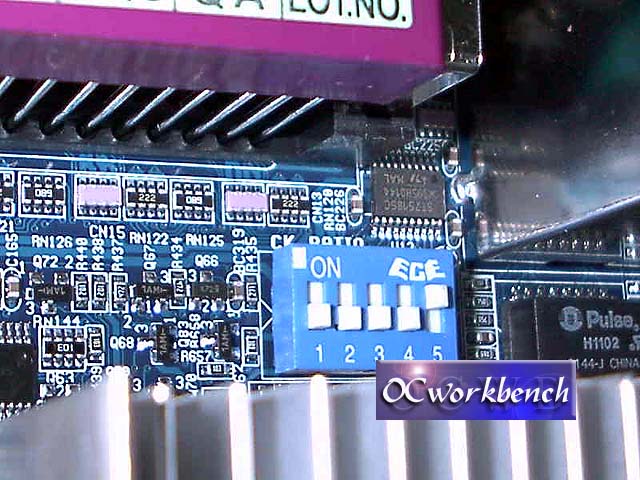

The Multiplier which is located right behind the parallel port. Your CPU needs to be unlocked before any settings on the multiplier adjustment will work.
