BIOS settings

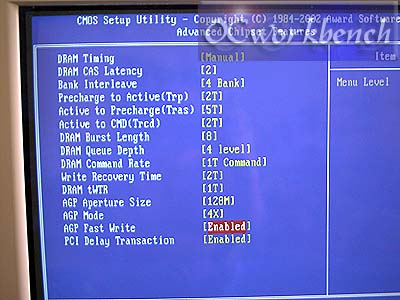

There are many settings available in the BIOS and the most useful ones are the CAS Latency, Trp, Tras, Burst length, Queue Depth, Command Rate etc. We set it to the following in our tests.

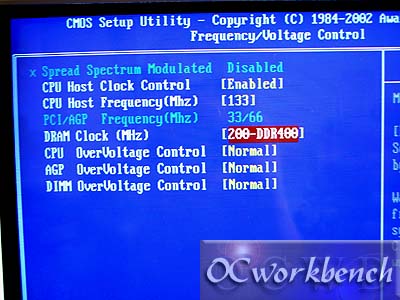

The Frequency/Voltage Control screen allows you to overclock your board and set certain parameter abt how the CPU:RAM Ratio. It is possible to select

133-DDR266 (sync), 166-DDR333 (async) or 200-DDR400 (async) for the DRAM Clk.

CPU Frequencies can be adjusted up to 165 if the dip switch is set to operate at 133Mhz. 166 ~ 200Mhz is selectable if dip switch SW1 is set to OFF/ON

CPU voltage can be increased by +5%,+7.5% or +10%
AGP and DIMM voltage can be increase by +0.1v ~ +0.3v
