ECS L4S5A Review (4)
Overclocker 22 Mar 2001
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- Intel Pentium 4 ES 1.5Ghz
- Thermaltake heatink/fan
- IBM 13.5GB 7200 RPM HD
- MSI Geforce Ti200
- 256MB Nanya DDR333 DDR CAS 2.5
- IBM 20G ATA-133 HD

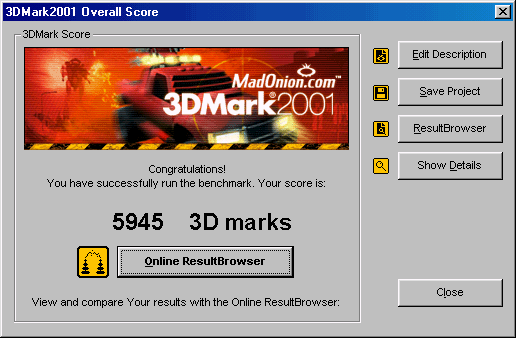

3DMark2001
DDR333
|
ECS
L4S5A DDR333 |
ABIT
SD7-533 DDR 200/266 |
ABIT
SD7-533 DDR200
/333 |
MSI
645Ultra DDR 200/266 |
MSI
645Ultra DDR200
/333 |
ECS
P4S5A (SiS645 DDR) 200/266 |
ECS
P4S5A (SiS645 DDR) 200/333 |
SiS645
Ref Board 200/266 |
SiS645
Ref Board 200/333 |
| 3DMark2001 |
5945 |
5984 |
6042 |
5964 |
6023 |
5733 |
- |
5960 |
6102 |
|
MSI 845 Ultra (i845
DDR 200/266 |
ABIT BD7 RAID (i845
DDR 200/266 |
DFI
NB70-
SC (i845
DDR 200/266 |
ALi
ALADDiN P4 DDR 200/266 |
Shuttle
AV40R (p4x266 ddr) 200/266 |
2theMax
EP-4B2A (i845 + SDR) 100/133 |
ABIT
TH7 II-RAID (i850 + RAMBUS) 100/133 |
| 3DMark2001 |
6012 |
5997 |
5957 |
5901 |
5921 |
- |
5971 |
* new bios of ecs p4s5a has no
100/166 option
Summary
Although we saw impressive memory scores at
DDR333 Async memory setting, the 3D performance doesn't seem to show that there
are much difference as compared to the reference board running at DDR333 mode.
Again, we think it could be that the BIOS is not tuned for performance.
FSB
ECS L4S5A= 99.59Mhz (200/333)
ABIT SD7-533 = 100.9Mhz (200/266), 99.75
(200/333)
ALi ALADDiN P4 Ref = 100.00Mhz (200/266)
MSI 645Ultra = 100.7Mhz (200/266), 100.1Mhz (200/333)
ECS P4S5A = 100.00Mhz
Sis645 Ref = 100.67 (200/266), 100.9 (200/333)
Shuttle AV40R = 101.25Mhz
2themax EP-4B2A = 101.0Mhz
ABIT TH7-II RAID = 100.00Mhz
DFI NB70-SC = 102.0Mhz
