ECS K7S7AG GameUnion
SiS 746 + Xabre200 Mainboard Gallery (2)

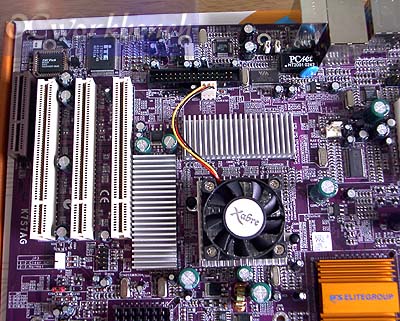

1 CNR, 3 PCI, Xabre 200 GPU with 64M attched with heatsinks.

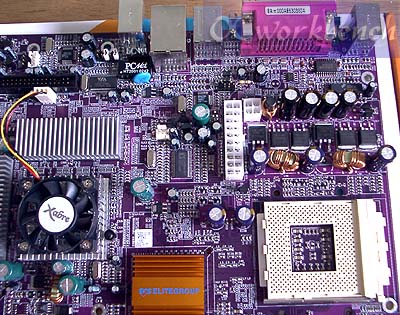

A 3-phase design is used on board. We can also see that there are four mounting
holes next to Socket A.

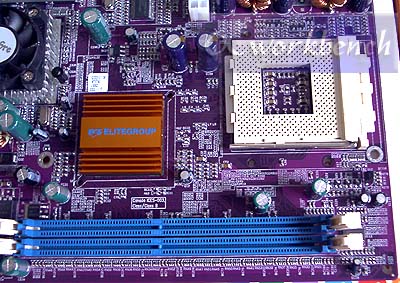

This board only supports up to 2 x 184pin DDR266/333 modules.
The south bridge SiS 963 with heatsink attached and two channels IDE connectors.

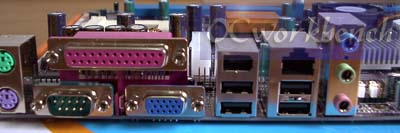

Rear of the mainboard. The standard PS/2 Keyboard, Mouse, Com1, LPT1, VGA, 1394,
4 USB 2.0, 1 10/100Mbps LAN, 6 channel audio.
|
|
