ECS K7S7AG GameUnion SiS 746 + Xabre200 Mainboard Gallery (3)
Bluetooth 20 Dec 2002

Xabre 200 GPU on board 64M DDR ram.

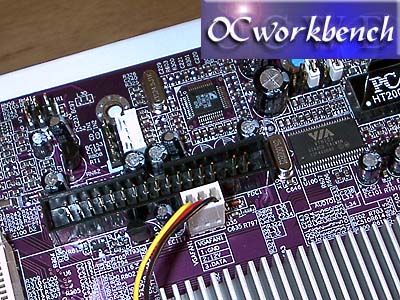

The floppy drive connector is reposition all the way to the back of the mainboard. Next to it is the VIA 6103 chipset supporting 1394. Behind it is a CMI9739 supporting AC97 6 channel audio chipset.

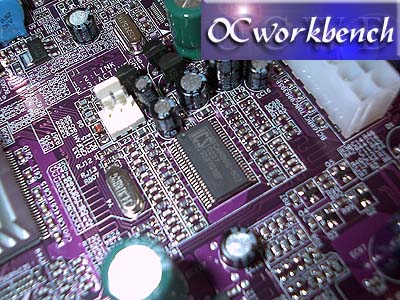

For those who are interested, the clkgen is ICS chip 952701BF/

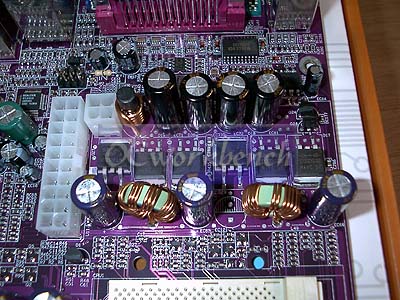

The power connector and 3 phase design.

ECS repeats history by using doublesided tape on the North Bridge. Using a screw driver, I removed the heatsink and we see the SiS 746 North Bridge underneath.

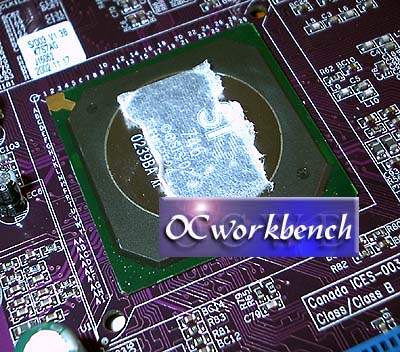

An A1 stepping week 39 SiS 746 North Bridge.
