Chaintech 7VJL KT333 gallery (4)
Overclocker 3 Jul 2002

BIOS Screen

The performance of a system is determined by the ram timings and the ram that is paired up with the mainboard. Below are screen shots of the various BIOS screen shots that determines it.

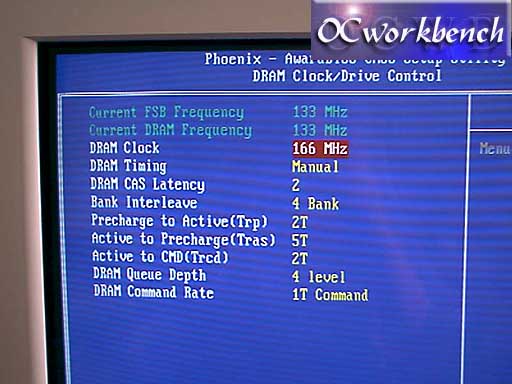

DRAM Clock sets the Async or Sync mode to run it at 133 or 166Mhz. We set the system to run at CAS 2 2-5-2, 1T cmd

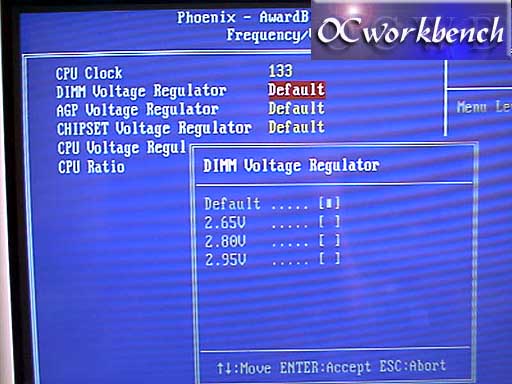

DIMM voltage selections are 2.65v, 2.80v and 2.95v

AGP Voltage Default, 2.65, 2.80 and 2.95v

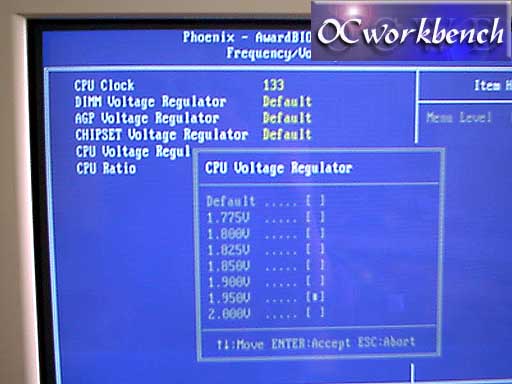

CPU Vcore range from default to 2.00v

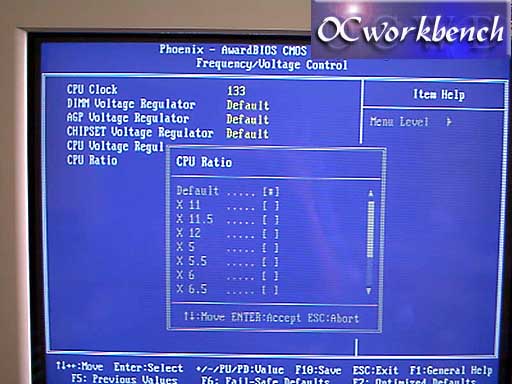

CPU ratio is from 6x to 12x
