ABIT BG7E
i845GE Mainboard Gallery (1)
The Mainboard

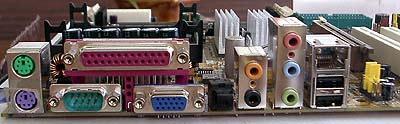

Back panel showing the connectors. VGA connector, SPDIF out, Rear left/Rear Right and Centre/Subwoofer connectors, Mic In, Line In, Frontleft/FrontRight connectors, 10/100 Mbps LAN port, 2 USB ports.

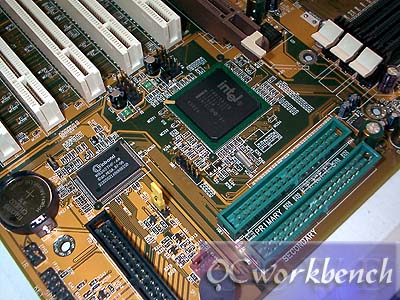

The floppy connector, two IDE channels supporting ATA100, ICH4 (82801DB)

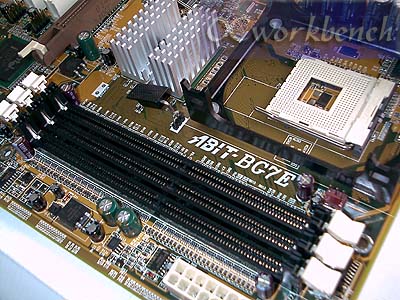

3 DIMM slots, the CPU Socket 478

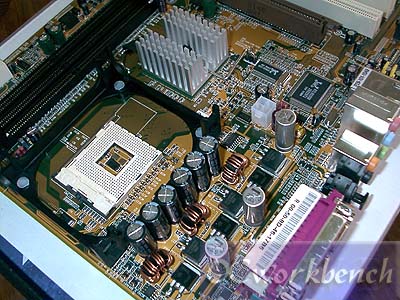

Looks like a 3 phase power is used on this board.

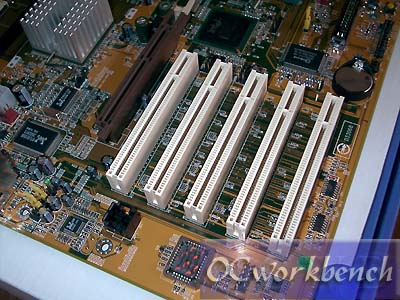

1 AGP, 5 PCI slots, 6 ch audio using the ALC650
|
|
