ABIT BG7E i845GE Mainboard Gallery (1)
Overclocker 4 Dec 2002

The BIOS

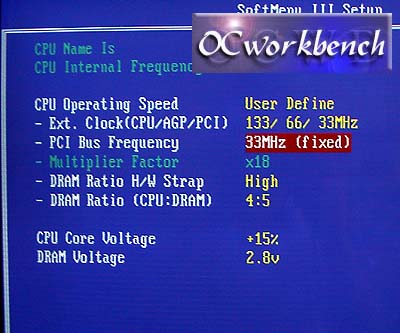

SoftMENU III is available on the BG7E.

FSB : 100 ~ 250 at 1mhz steppings
PCI Bus Frequency : 33 (Fix), /4, /3
CPU Core Voltage : Default, +5%, +10%, +15%
DRAM Voltage : 2.5 ~ 2.8v at 0.1v intervals

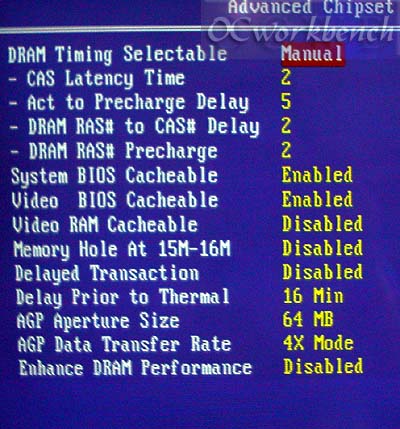

The advance chipset features page allows you to adjust the ram timings to "overclock" the performance of the system (depends on RAM used). In our test, we used a pc of 512M Corsair XMS3500 and run it at CAS 2, 5-2-2, AGP Aperture is set to 128M.

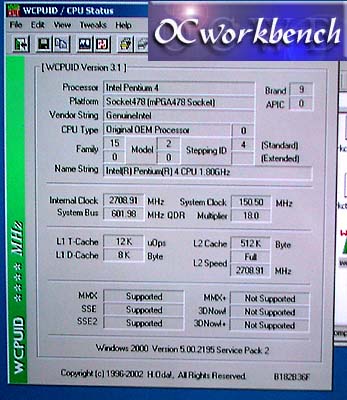

In our overclocking test, we are able to run at 150Mhz at CAS 2, 5-2-2 which runs the P4 1.8A as a P4 2.7G. Below is a screen shot of WCPUID. If we run it at 155mhz, we can only get stable performance if we lower the RAM timings to SPD.
