ABIT AT7 Gallery (5)
Adol 10 Apr 2002

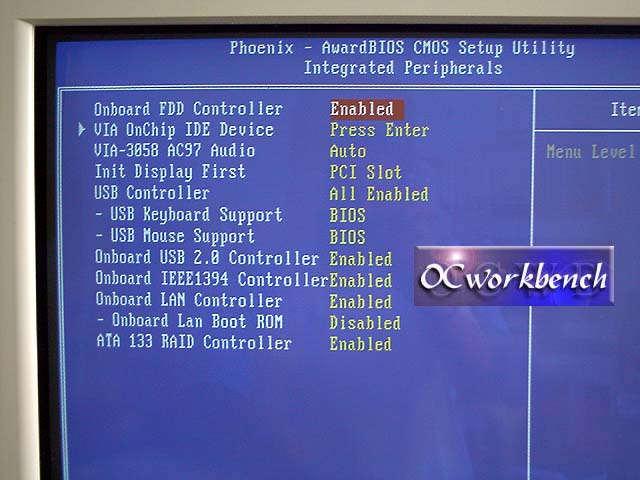

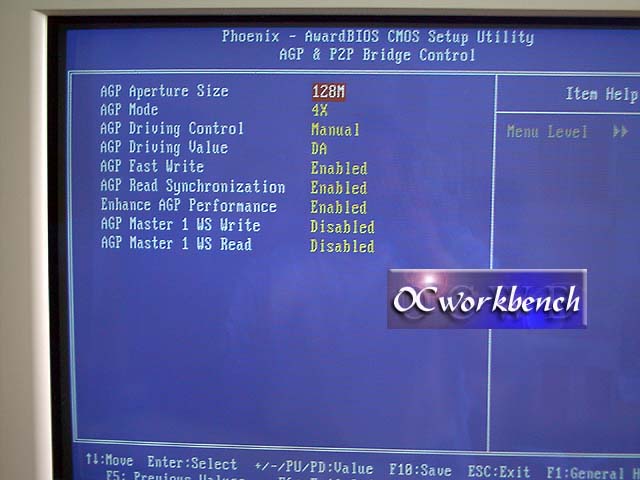

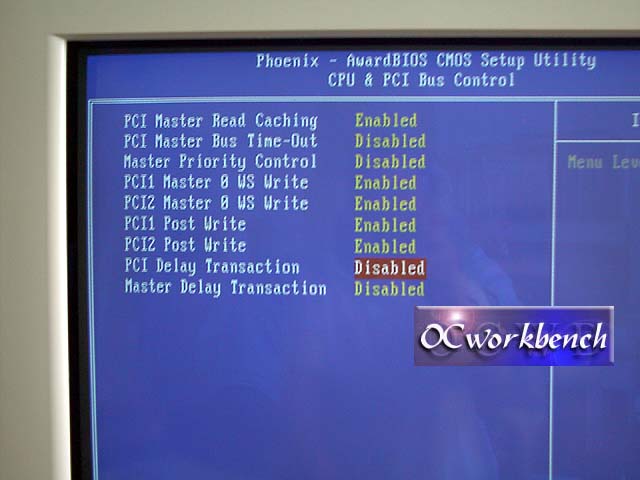

BIOS Screen shots

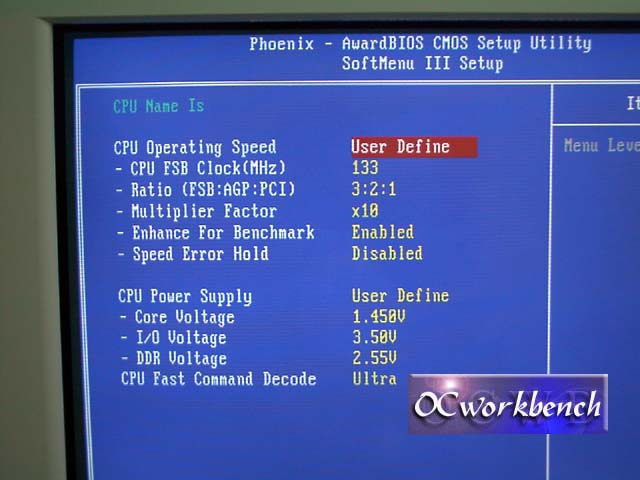

The famous SoftMenu III, in this screen, this is where most of the settings are set.

CPU FSB : 100 ~ 250 at 1mhz stepping
Ratio (FSB:AGP:PCI) : 5:2:1 (DDR333)
CPU Vcore : 1.10v ~ 1.85v at 0.025v interval
I/O voltage : 3.5 and 3.65v selectable
DDR Voltage 2.55, 2.65, 2.75 and 2.85v

In our tests, we set CPU Fast command decode to Ultra.

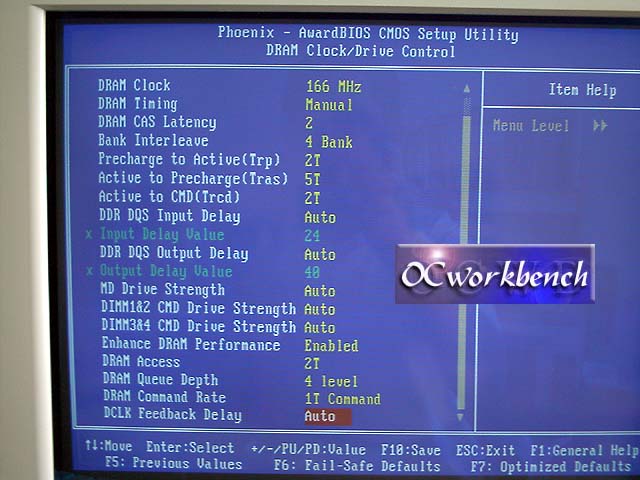

Manual settings of the timings are alowed. There are many options available in the DRAM Clock/Drive Control. We set our system to the below settings.
