Here are some close up pictures of this mainboard.

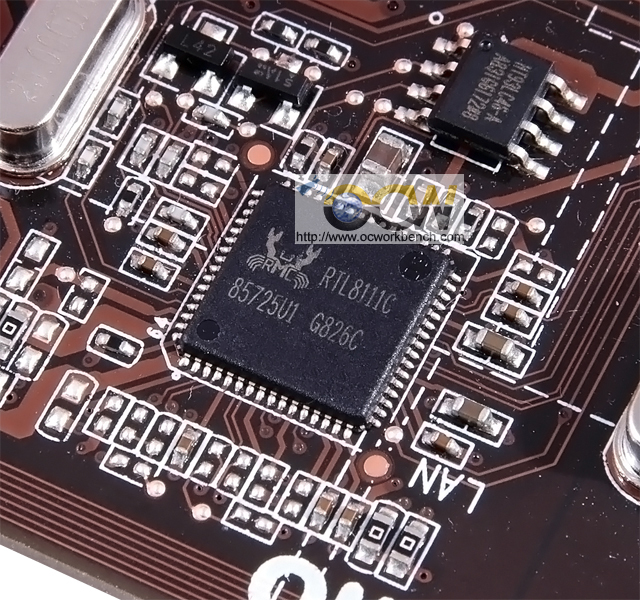

The Gigabit Ethernet on board is powered by the Realtek RTL8111C

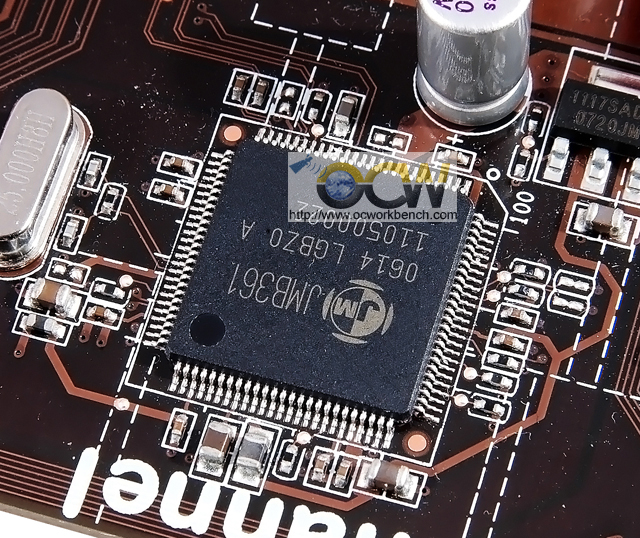

The Jmicron JMB361 supports the additional eSATA port.

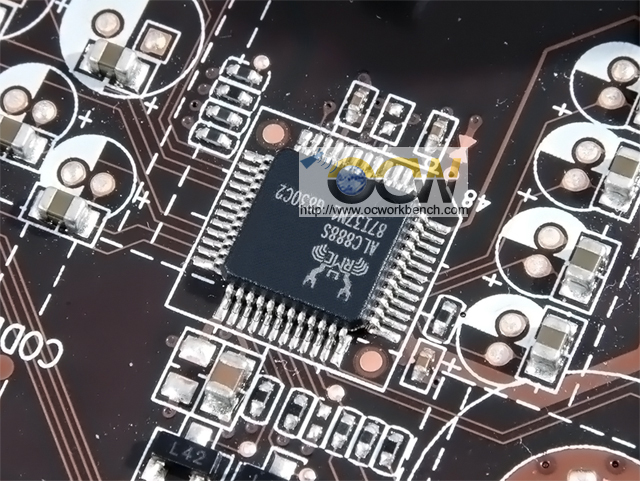

Audio codec used on board is ALC888S

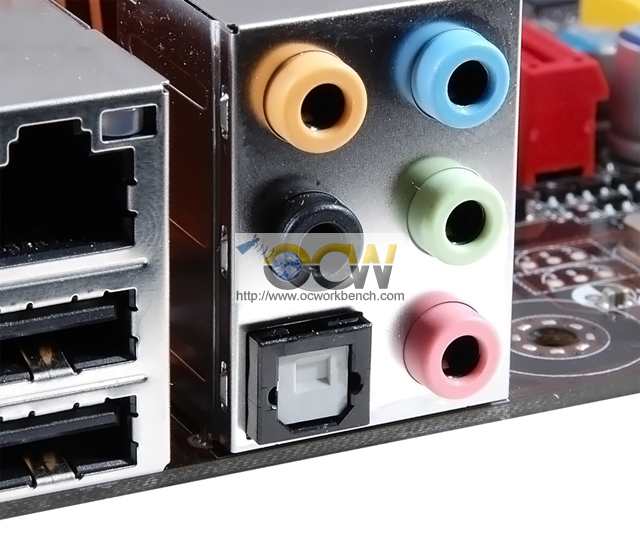

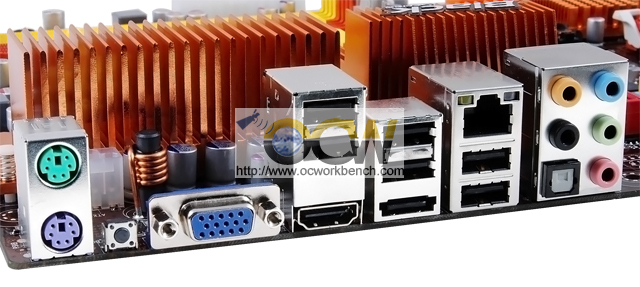

The backplane of the board consists of the PS/2 Keyboard/Mouse. Clear CMOS switch, D-SUB, 6 USB ports, 1 HDMI port, 7.1 ch audio ports with optical out and GbE port and 1 eSATA port.

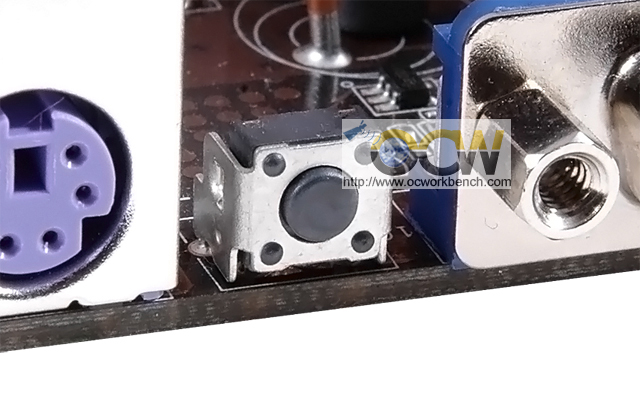

I particular like the idea of ClearCMOS at the back of the board. In this case, DIY users do no need to open up the box to Clear CMOS when the CPU does not boot up due to overclocking it way too high in clock speed.
