Mainboard Layout of ECS A790GXM-AD3 AM3 DDR3 (AMD 790GX+SB750) mainboard
Bluetooth 12 Jan 2009

Gallery

Here are some close up pictures of this mainboard.

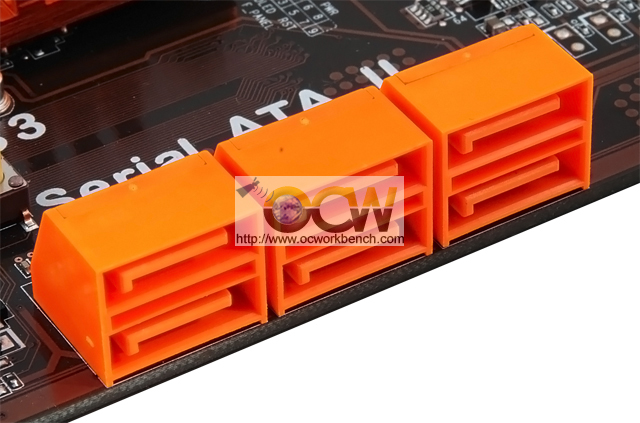

The South bridge supports these 6 SATAII ports which can operate in RAID 0,1,0+1,5.

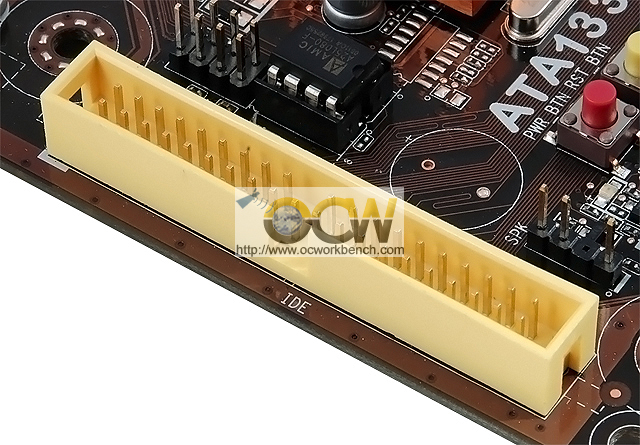

IDE port

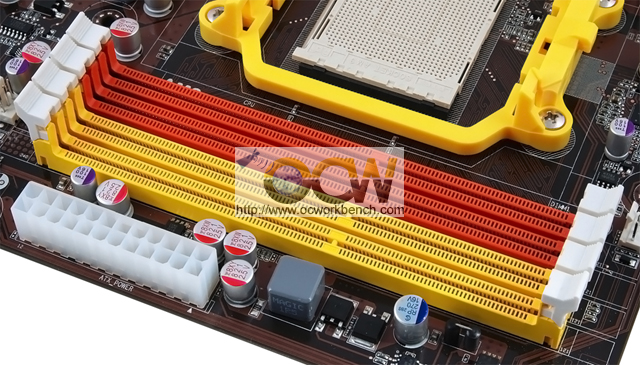

4 X DDR3-1333 slots

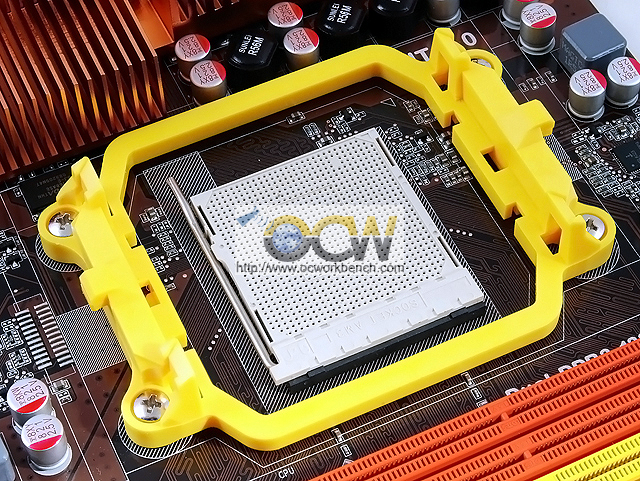

Socket AM3
