Mainboard Layout of ECS A790GXM-AD3 AM3 DDR3 (AMD 790GX+SB750) mainboard
Bluetooth 12 Jan 2009

Gallery

Here are some close up pictures of this mainboard.

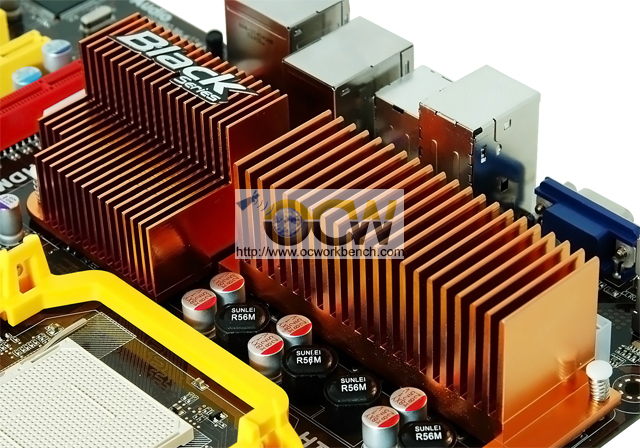

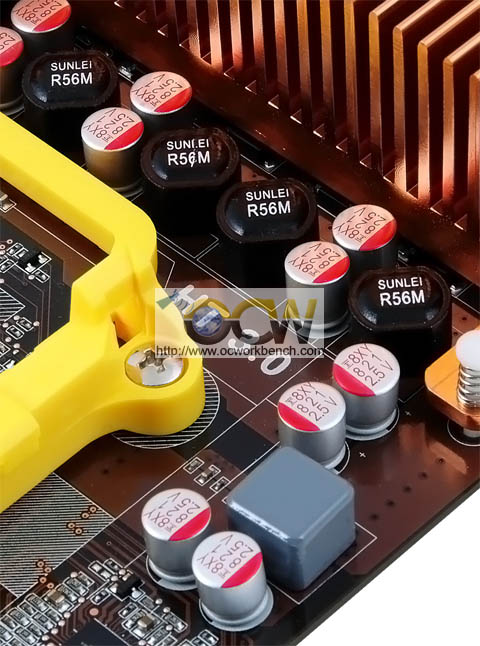

The close up of the heatsinks on top of the MOSFETs. We can see that the board has 4+1 phase for power.

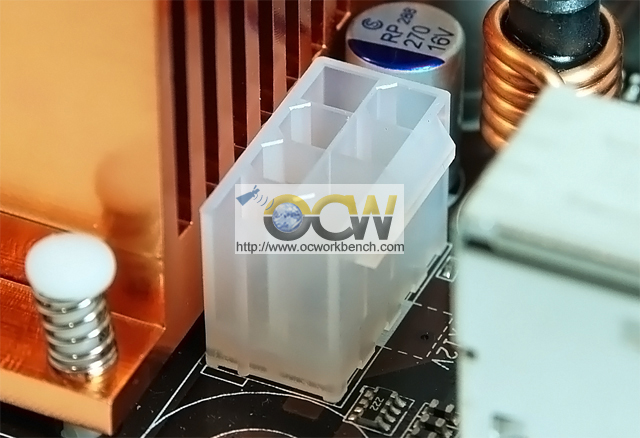

8 pin AUX power input

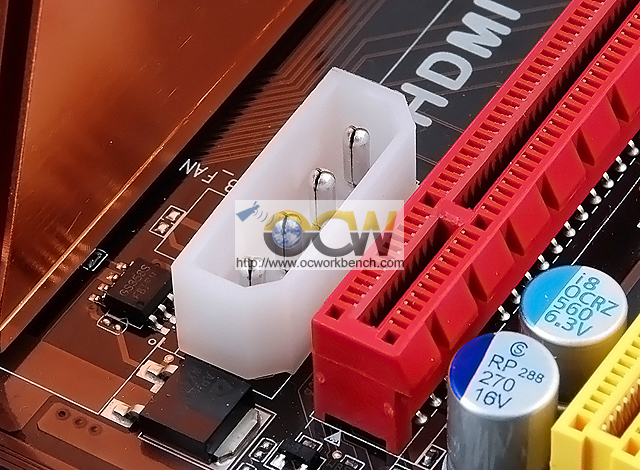

4 pin for additional power for CrossFire
