![](IMG_2439%20copy.jpg) |
![](IMG_2440%20copy.jpg) |

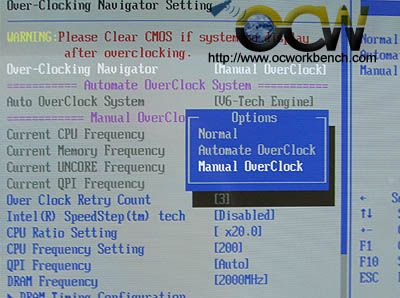

This is the main
screen where you control most of the overclocking functions. Over here you
can set it to Normal, Automate or Manual Overclock under the Overclocknig
Navigator option. |

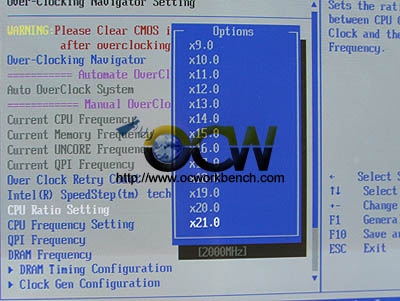

In manual
overclocking, we can set the CPU Multiplier up to x21 for Core i5 750. |
![](IMG_2441%20copy.jpg) |
![](IMG_2442%20copy.jpg) |

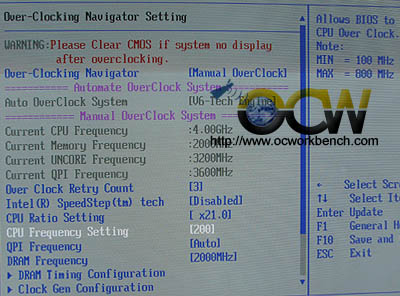

CPU Freq can be
adjusted within 100 - 800MHz |

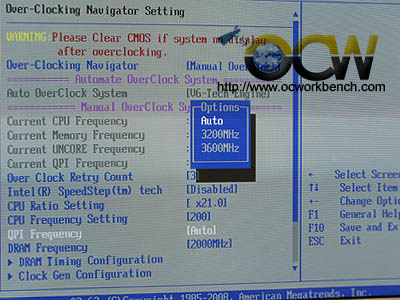

QPI Frequency can
be selected as 3.2GHz or 3.6 GHz. |
![](IMG_2443%20copy.jpg) |
![](IMG_2444%20copy.jpg) |
DRAM Frequency can
be selected as 1200, 1600 or 2000Mhz. In this case, the BCLK is set as
200MHz. |
Alternatively, you might want to
use XMP timings if you are using a XMP capable DDR3 module |
![](IMG_2445%20copy.jpg) |
![](IMG_2446%20copy.jpg) |

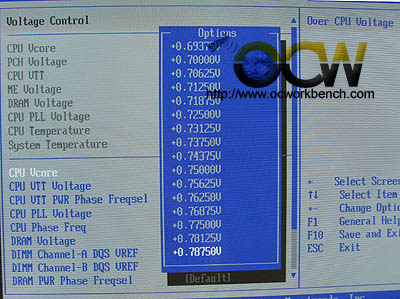

CPU voltage applied
can be +0.7875 of the default. |
VTT voltage can be
upped to 2.030v |
