ASRock X58 Extreme Intel X58+ICH10R Core i7 Mainboard Review - BIOS Screen shots 3
Bluetooth 29 Jun 2009

BIOS 2

The screen shots are taken with board installed with a Intel Core i7 965

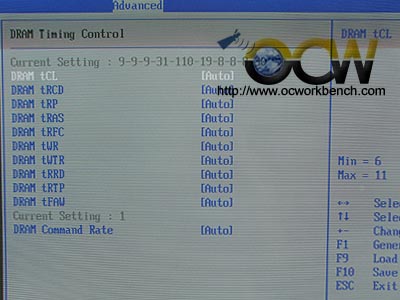

ASync memory settings available	Customise your RAM timings including CAS, trcd, trd, tras, cmd rate.

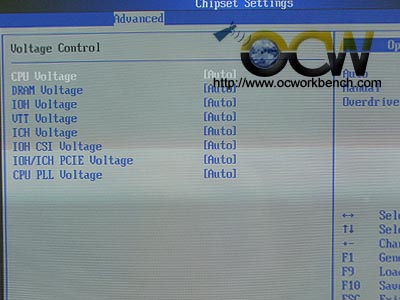

In this page, you can set the various voltages applied to the various component of the system. CPU Voltage : 0.84375v to 2.00v DRAM : 1.564v to 1.99v IOH voltage : 1.11v to 1.494v VTT : 1.20v to 1.90v ICH : 1.12v to 1.56v IOH CSI voltage: 1.12v to 1.56v IOH/ICH PCIE voltage : 1.52v to 1.90v CPU PLL voltage :1.82v to 2.50v	You can also save your settings into profiles. A max of 3 profiles can be save/loaded.
