Benchmarks (Pricing)

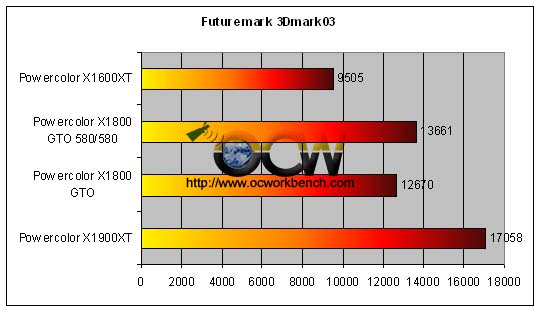

Futuremark 3DMark2003 (1024x768x32)

The card is ran at default clock which is at 500/495 (core/mem). A score of 12670 is obtained when a single card is ran on the ECS KA1 MVP Extreme board (ATi RD480 chipset). The board runs with Corsair memory at CAS 2, 5-2-2, 1T cmd. The system is loaded with drivers CD provided in the package. ATi Catalyst 6.3 is still unable to recognise the card.

In terms of overclocking, we managed to push the Core clk to 580 and memory clk at 580. This is set using ATi tools. At 580/580, the score is pumped up to 13661 which is approx 7.8% higher than default. Although the GPU can be increased to around 600MHz, it seems to be unstable with 3DMark aborting from the tests. The two other figures benchmarks you see in comparison is the X1600XT and X1900XT card running on the same board.
