BIOS I
 |
 |

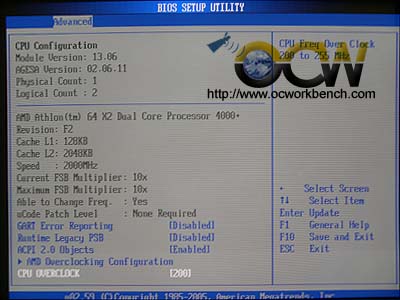

| This screen shows the CPU used, the
multiplier, the CPU overclock range 200 ~ 250MHz can be chosen |

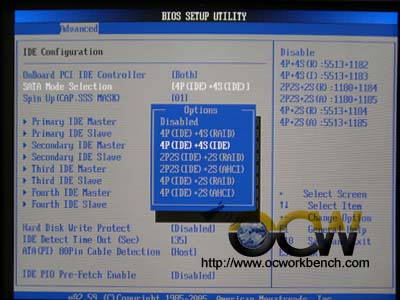

In the BIOS setup, the board can be
configured into various IDE+SATA modes as show above. |
 |
 |

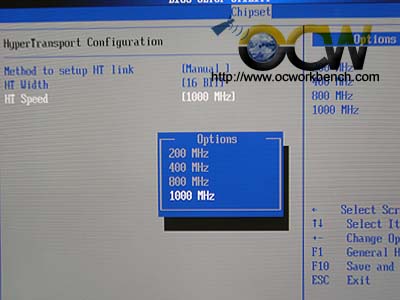

| HT Speed can also be configured to run at
1,2,4,5x (200,400,800,1000MHz), HT width can be set to 8 bit or 16 bits for
Hypertransport |

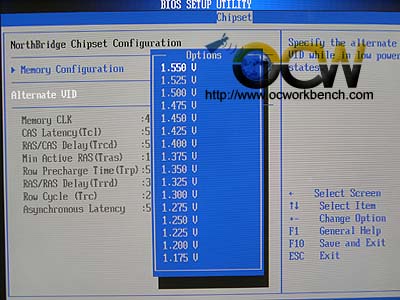

This screen shows the alternative VID for the
North bridge chipset. Behind it is the Memory configuration settings by
default. |
