SiS 771/966 Reference Board Review Benchmarks - Sisoft Sandra and CPU CLK
Bluetooth 18 Sep 2006

Benchmarks

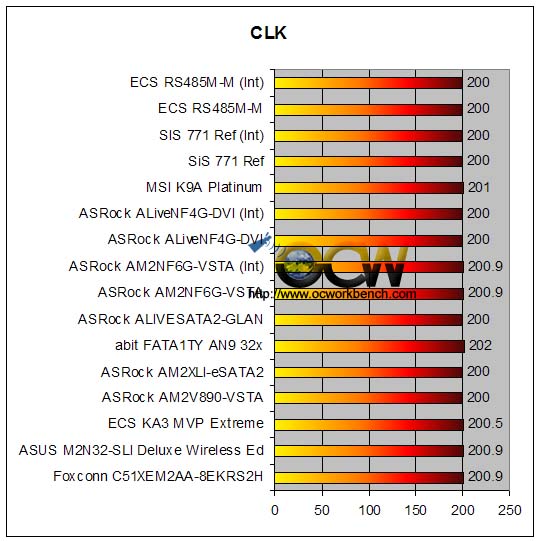

In this test, we measured the CLK used by the boards. Both boards are set to run in SPD mode of the modules which is rated CAS 5, 5-5-15, 2T. The MSI K9A Platinum runs at 201MHz which 1MHz higher than default. The ECS KA3 MVP Extreme based on the same chipsets runs at 1/2 a mhz slower. Both the ECS RS485-M-M and SIS 771 reference board runs on 200.00MHz on the dot.

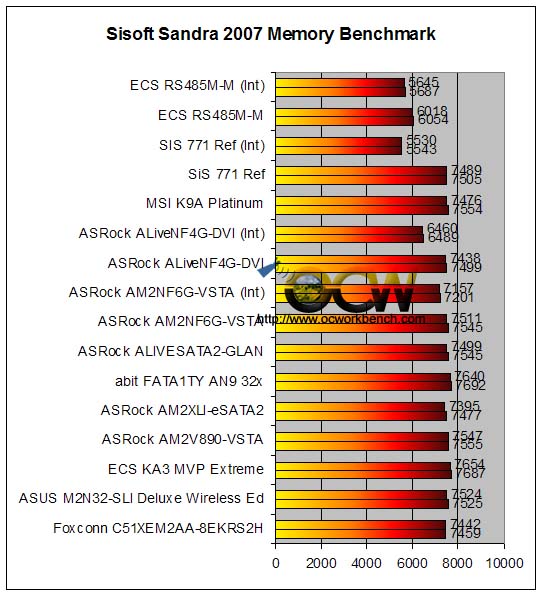

With that in mind, we take a look at the memory benchmark scores using Sandra 2007. The SiS 771 is comparable to th rest of the AM2 boards. Notice that the levels dropped to 5530/5543 when 128M of shared memory is used.

Next >>>
