Gigabyte 7VRXP (5)
Overclocker 12 Feb 2002

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

  • AMD AthlonXP 1500+ and Thermoengine heatsink/fan
  • Maxtor 40G ATA133 HD
  • AOPEN 40X CDROM
  • MSI Geforce3 Ti200 Graphics card
  • Nanya DDR333 256MB DDR
  • Channelwell 375W AMD Approved PSU

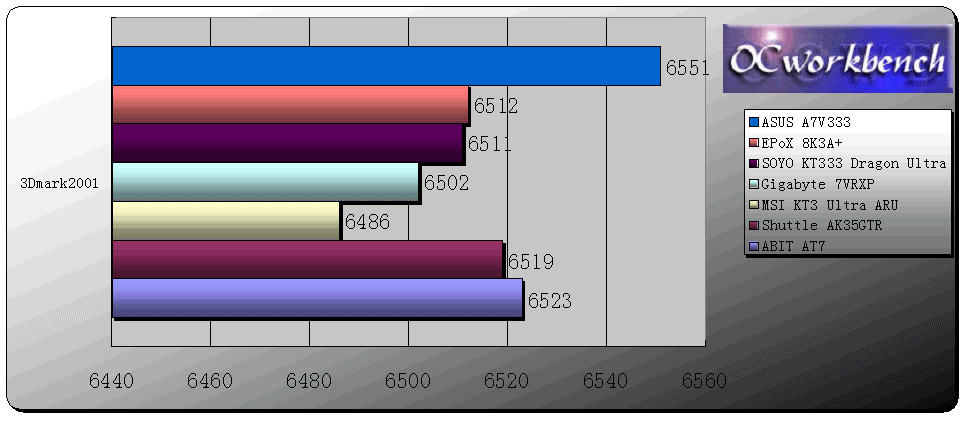

3DMark2001

DDR266

DDR333

Summary

AthlonXP1500+

Update : With the F6e bios, 3D performance is attainable at 1T cmd DDR333 mode.

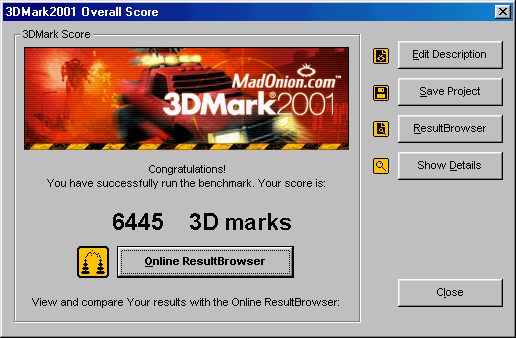

We benchmark the board using a MSI Geforce3 Ti200 graphics card with the detonator 21.83 drivers. At DDR333 (133/166), it scores 6461.  At DDR266 (133/133), the score is 6445. The difference is only 2.5% which is not a lot. The results does not differ too much from the KT266A boards, Gigabyte 7VTXH+, ABIT KR7A and Epox 8KHA+.

  Gigabyte 7VRXP DDR266 Cas2 1T cmd Gigabyte 7VTXH+ DDR333 Cas2 2T cmd Gigabyte 7VTXH+ Cas2 1T cmd ABIT KR7A CAS2 1Tcmd, Ultra EPoX 8KHA+ CAS2,1Tcmd
3Dmark2001 6445 6461 6423 6427 6431



  Iwill XP333 v2.0 CAS2 FAST ECS K7S6A  Ultra timings Leadtek 7350KDA Ultra timings
3Dmark2001 6303 6375 6399

FSB

Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 133.34Mhz
ABIT KR7A = 133.38Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
