Detail pictures of Gigabyte GA-P55A-UD7 Intel P55 mainboard USB3/SATAIII/SLI/CFX board 1
Bluetooth 15 Jan 2010

Detail pictures

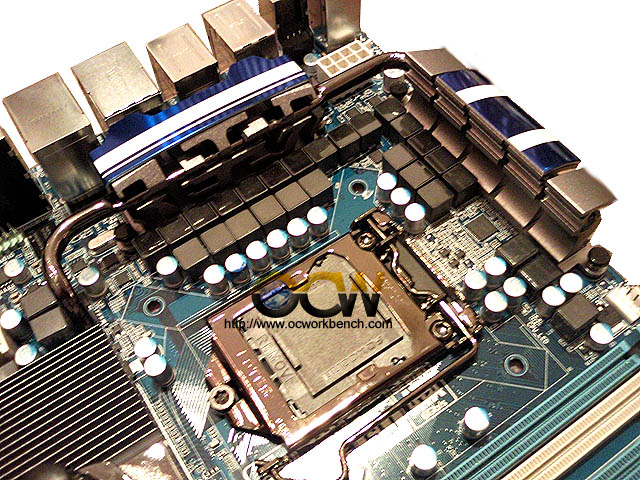

The CPU socket surrounded by a 24 phase power

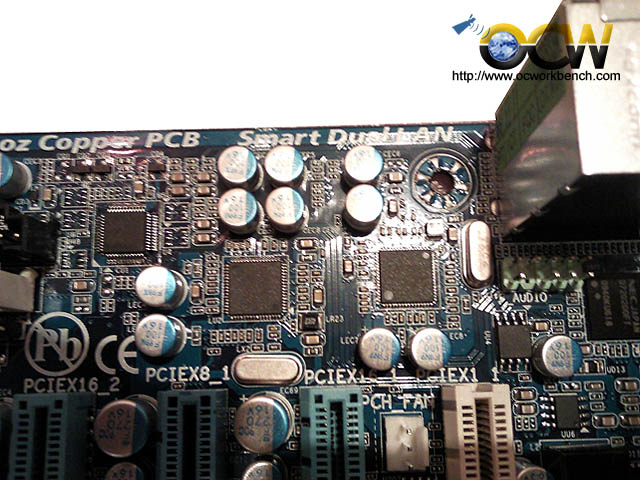

The audio codec, 2 GbE controller and NEC 3.0 chipset. The 4 PCIe slots are labeled PCIe x8, PCIe x16, PCIe x8, PCIe x16

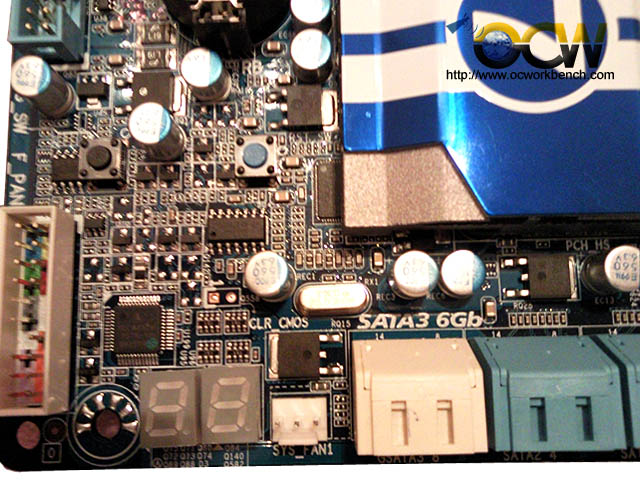

Test switches, debug led, front panel control and clear CMOS switches.

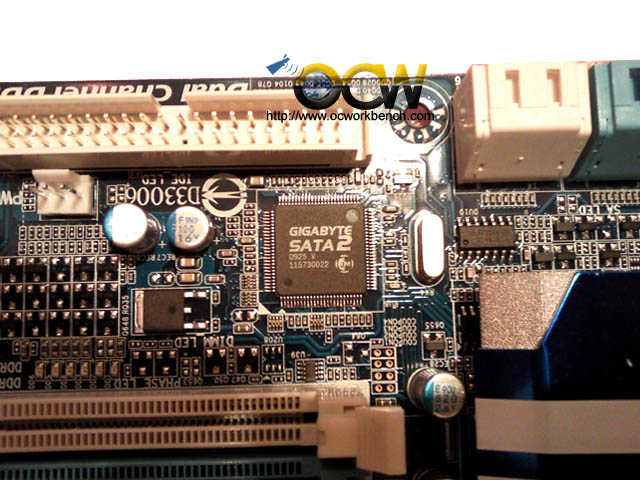

The IDE channel a a pair of SATA2 are supported by the Jmicron 363 controller chipset
