BIOS Screen shot 1 of
Gigabyte GA-H55M-USB3 Bluetooth 14 Feb 2010
BIOS 1

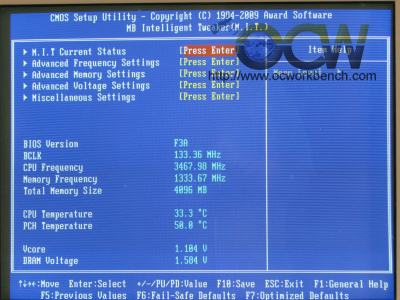

The CMOS setup utility showing the MB intelligent Tweaking
Page. On this page, ti shows the BIOS version, BCLK, CPU Freq, temperature,
vcore voltage etc. All other tweakings can be done in the 5 seperate 2nd
level menus.

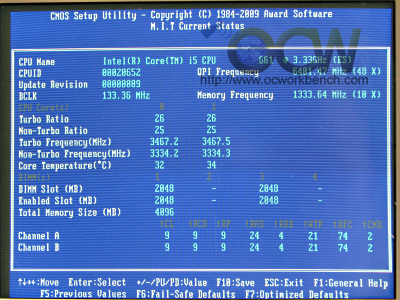

We can see from the summary page that the 3.33GHz Core
i5-661 is running at 3.43GHz, slightly higher than the other boards.

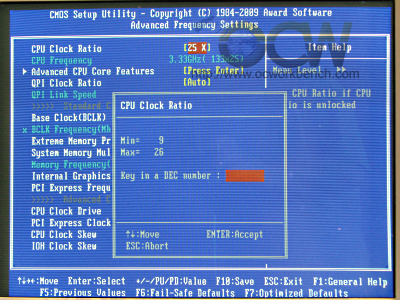

CPU clock ratio or multiplier can be set from 9x to 26x

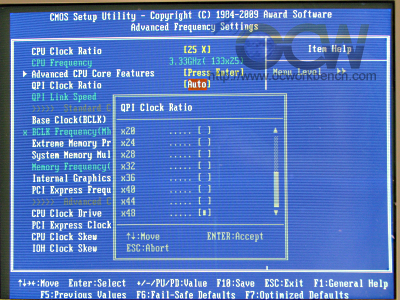

QPI Ratio

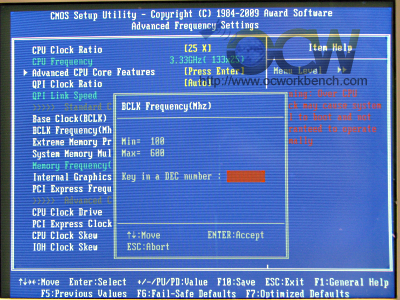

BCLK can be adjusted from 100 to 600MHz

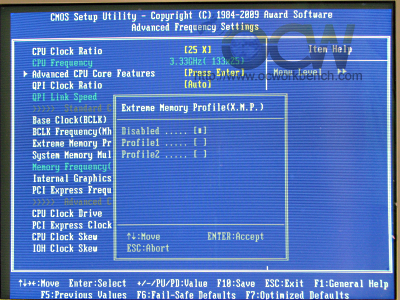

For those who are lazy to tweak and uses XMP capable ram
module, you can use this to set it to Profile 1 or 2 to tap the ram setting
of DDR3-2000.

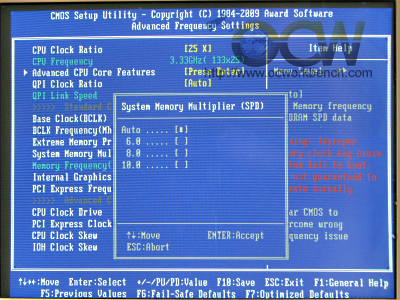

Memory multiplier. The memory is always running a ratio of
the BCLK

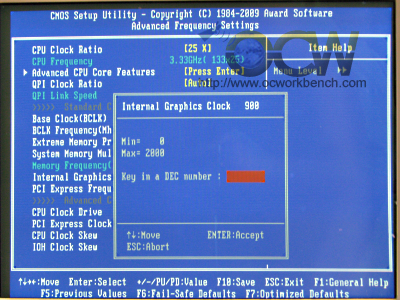

Internal graphics clk for our cpu is 900MHz. Over here the
range allows you to tune it up to 2000MHz
